UV-106-MH Ozone Analyzer

Medium/High range precision UV Ozone Analyzer.  Versatile analyzer has a range 0-10,000 ppm, with resolution of 0.01 ppm  resolution allows for medium range ozone measurement up to 10,000 ppm.  This analyzer can also read in ozone in % by volume up to 1% ozone by volume.

Ozone Information


The UV-106-MH is a medium/high range ozone analyzer featuring ozone measurements up to 10,000 ppm with low range measurement of ozone down to 0.01 ppm.

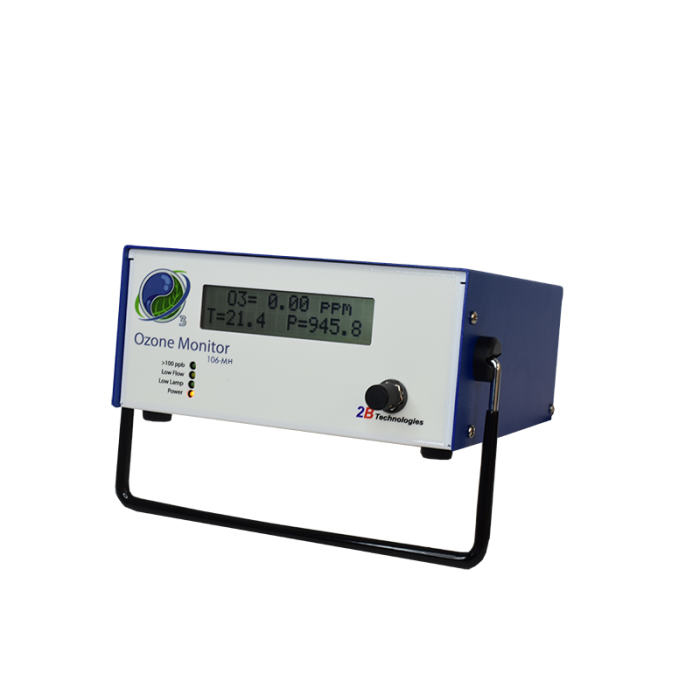

Bench mount ozone analyzer is compact and easy to use.  The UV-106-MH can be purchased in either the bench mount or NEMA enclosure.

Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream.  A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp.  This method of ozone detection will offer accurate detection of ozone at levels up to 10,000 without compromising low range detection below 1 ppm, while eliminating most cross-sensitivity from other gasses.



  • Measurement based on UV absorption
  • Low power consumption; can be battery operated
  • Internal data logger with real time clock
  • On-board microprocessor with interactive menus includes data averaging options of 10 s, 1 m, 5 m and 1 hr
  • USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure
  • Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units
  • Two level relay for control purposes (e.g., control of ozone source or turn warning light on and off)
  • Long-life pump (15,000 hr)

The Model UV-106 was designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board.  Therefore, the UV-106 can be purchased without an enclosure for OEM applications.
UV-106M OEM Ozone Analzyer
For applications where a wall mount analyzer, or rugged enclosure for harsh environments are a better fit, the NEMA enclosure can be used for the UV-106-MH Ozone Analyzer.
UV-106M NEMA Ozone Analzyer


We highly recommend replacing the filter frequently to prevent contamination of the flow path by particulate matter.


Picture of Filter Housing: Product: FILTERHS


More Information
Manufacturer 2B Technologies
Call For Price No
Gas Ozone (O3)
Range 0-10,000 ppm
Resolution 0.01 ppm
Response Time 10 seconds
Sensor type UV Analzyer
Sampling Method Fan
Alarms Relays
Power Requirements 12 VDC with supplied adapter
Field Replaceable Battery No
Warranty 1 Year
