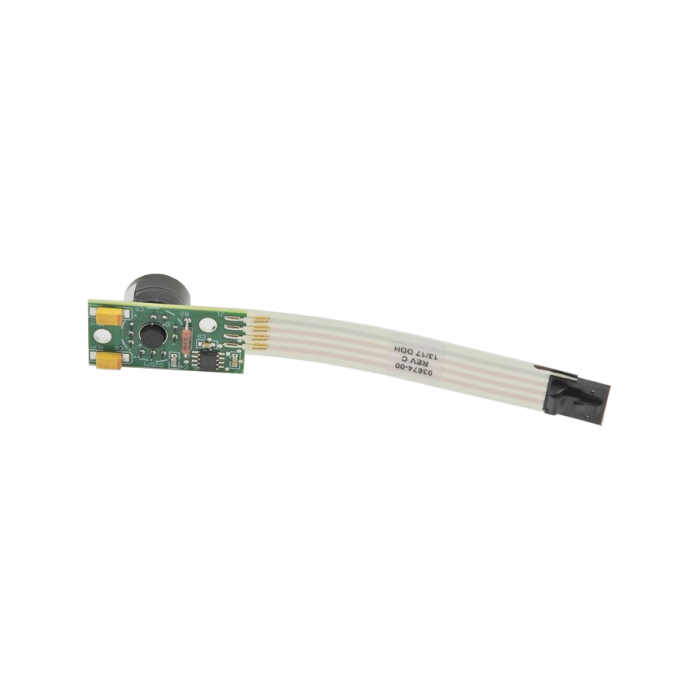

UV Detector Assembly

Replacement Ultra Violet Lamp for the M452, M454, M465H, M465L, and M465M Ozone Analyzers.

UV Detector Assembly: 025710100

$848.00

Description / UV Detector Assembly

Replacement UV Detector Assembly for the M452 and M454, M456H, M465L, and the M465M Ozone Analyzers.

M465H Replacement Parts
Part Description	Part Number
Ultra Violet Lamp	030700000
UV Detector Assembly	025710100
Spring	HW0000020
Sapphire Window	OP0000019
Pressure Sensor	SW0000029
Power Supply 60W	PS0000042
Ozone Scrubber Assembly	048990200
O-Ring 2-022	OR0000076
O-Ring 2-018	OR0000075
O-Ring 2-014	OR0000074
Maintenance Kit	028510000
High Concentration Scrubber	048990300
Front Panel Board Single Channel	053130400
Critical Flow Orifice	000940800
Auto Zero Valve	052740000

M465L Replacement Parts
Part Description	Part Number
UV Lamp Assembly	065660000
UV Detector Assembly	025710100
Reference Scrubber, Low Concentration	072910001
Pump Assembly, 13" Leads	047020200
Power Supply 60W	PS0000042
Ozone Sensor Assembly, Low Concentration	073610100
Ozone Sensor Assembly, High Concentration	073610000
O-Ring 2-012	OR0000039
Main Board Assembly	050720300
High Concentration Scrubber	048990300
Reference Scrubber, High Concentration	050300000
Front Panel Board Single Channel	053130400
Flowmeter	FM0000004
Filter Inline Disposable	FL0000033
Filter Elements, 30 Micron	036750000
Akit Exp. Kit Carulite	053010000
Pre-Filters, Single Stream	062310000
3 Way Valve, Peek/Viton	VA0000054

M465M Replacement Parts
Part Description	Part Number
Ultra Violet Lamp	030700000
UV Detector Assembly	025710100
Pump Assembly, 13" Leads	047020200
Pressure Sensor	SW0000029
Power Supply 60W	PS0000042
Ozone Scrubber Assembly	048990200
Maintenance Kit	028510000
High Concentration Scrubber	048990300
Front Panel Board Single Channel	053130400
Filter Elements, 30 Micron	036750000
Auto Zero Valve	051250000
