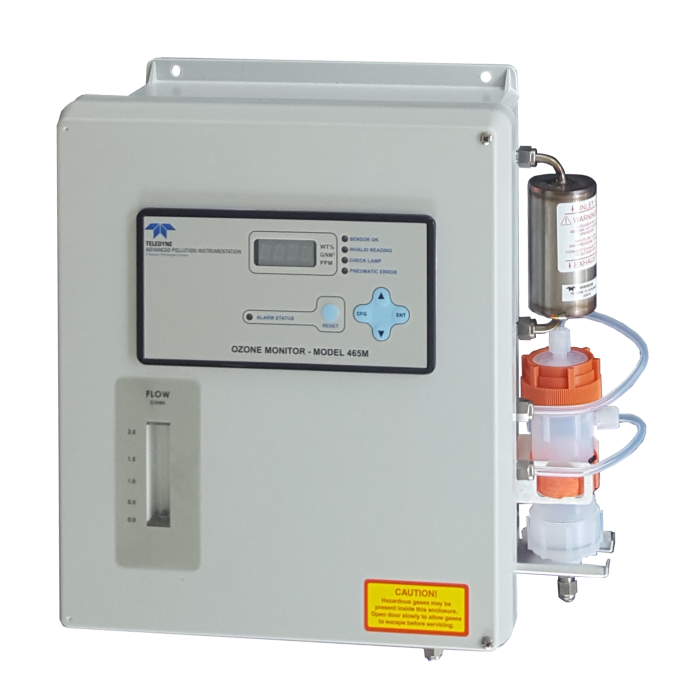

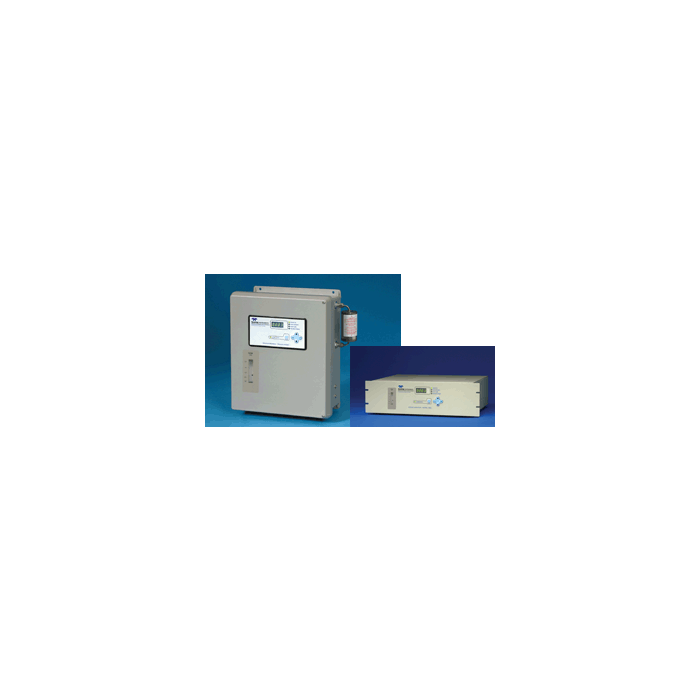

465M Ozone Analyzer
Medium range ozone analyzer for measurement of ozone up to 10,000 ppm or 3% by weight. Great for measurement of off-gas measurement or process system ozone measurement. This unit comes in a NEMA configuation only.
- SKU
- 465M
Description / 465M Ozone Analyzer
The Model 465M is a microprocessor based medium range ozone monitor for measuring process ozone concentrations in water treatment, food processing, and research applications. The design has been specifically
optimized for applications requiring the measurement of ozone at near-ambient pressure such as water treatment contactor off-gas measurement. The Model 465M has been designed to give accurate and stable
readings over long time periods with little or no maintenance or calibration. The Model 465M is available in a NEMA 4X wall mount enclosure.
The sensor module contained in the Model 465M uses detectors which have a very narrow band of spectral sensitivity, eliminating the need for UV band pass filters which are subject to deterioration by UV or humidity. Two detectors are used: one for the ozone measurement, and the other to compensate for changes in UV lamp intensity.
Built-in diagnostics provide warning signals in case operating parameters are out of range. Test values can be viewed while the Model 465M is operating. These displays, warnings, and self-diagnostics, along with the modular design, allow maximum uptime. In addition, any function that can be set or monitored from the front panel can be remotely set or viewed through the bidirectional RS-232 port.
Features:
- Standard one year warranty
- UV Absorption Method
- Microprocessor controlled
- Menu driven software
- Ranges 0-1000 ppm to 0-10,000 ppm
- Built-in diagnostics
- Self-check warning alarms
- Fast response times
- Minimal zero drift
- Sample Conditioning System for sampling from humid environments
- Programmable concentration alarms
- Temperature and pressure compensation
- Optional Ethernet
Specifications: | |
Measuring principle: | UV Absorption (Beer Lambert Law) |
Ranges: | 0-1000 ppm to 0-10,000 ppm 0-5g/Nm3 to 0-50 g/Nm3 0-1% w/w to 0-3% w/w |
Units: | ppm, % w/w, g/Nm3 |
Precision / Repeatability: | ± 0.5% of full scale |
Display resolution: | 1 ppm, 0.001 % w/w, 0.01 g/Nm3 |
Response time: | < 45 seconds to 95% |
Temperature compensation: | Standard |
Pressure compensation: | Standard |
Gas flow rate: | 1.0 – 1.5 LPM |
Operating Temperature Range: | 5 - 45° C |
Dimensions (HxWxD): | NEMA 4X – 16.01" (407 mm) x 15.77" (401 mm) x 8.02" (204 mm) |
Weight: | NEMA 4X – 16.5 lbs (7.5 kg) |
Power: | 100 - 240VAC, 50/60 Hz, 1.1A |
Analog output (Bi-polar): | 5V or 4-20mA or isolated output |
Status outputs: | System OK, Invalid Reading, UV Lamp Fault |
RS-232: | 57.6 Kbaud, DB-9 connector |
Approvals: | CE |
Filters
We highly recommend replacing the filter frequently to prevent contamination of the flow path by particulate matter.
Picture of Filter Housing: Product: FILTERHS
Downloads:
M465M Replacement Parts | |
Part Description | Part Number |
Ultra Violet Lamp | 030700000 |
UV Detector Assembly | 025710100 |
Pump Assembly, 13" Leads | 047020200 |
Pressure Sensor | SW0000029 |
Power Supply 60W | PS0000042 |
Ozone Scrubber Assembly | 048990200 |
Maintenance Kit | 028510000 |
High Concentration Scrubber | 048990300 |
Front Panel Board Single Channel | 053130400 |
Filter Elements, 30 Micron | 036750000 |
Auto Zero Valve | 051250000 |
More Information
Manufacturer | Teledyne API |
---|---|
4-20 mA Output | Yes |
Relays | 2 Relays |
Maximum Range | 0-500 ppm |
Minimum Range | 0-1 ppm |
Accuracy | ± 0.5% of full scale |
Min, Max, Avg | No |
Voltage Output | 0-5 V |
Power Requirements | 100 - 240VAC, 50/60 Hz |
Datalogging | No |
Rechargeable | Yes |
Warranty | 1 Year |
Audible Alarm | Yes |
Calibration | Annually |
Range | 0-1000 ppm to 0-10,000 ppm 0-5g/Nm3 to 0-50 g/Nm3 0-1% w/w to 0-3% w/w |
Unit Features | - NEMA 4X Industrial wall mount enclosure - Sample conditioning System for samoling from humid environments - Built-in diagnostics/error logs/warning alarms - Minimal zero drift - Programmable concentration alarms - Temperature and pressure compensation (standard) - 1, 3 and 6 stream versions available for safety monitoring |
Sensor Range | 0-10,000 ppm 0-50 g/Nm3 0-3% w/w |
Resolution | 0.001 ppm |
Sensor Range | 0-10,000 ppm 0-50 g/Nm3 0-3% w/w |
