If you’re managing ozone-generating equipment in a large facility—whether that’s a water treatment plant, manufacturing line, or environmental remediation site—you probably know how critical it is to handle excess ozone safely. Take a look at a rugged, turnkey ozone destruct system designed to neutralize ozone before it’s vented into the atmosphere. That is exactly what the CDU-10K Blower Unit from Oxidation Technologies offers.
What Is the CDU-10K?

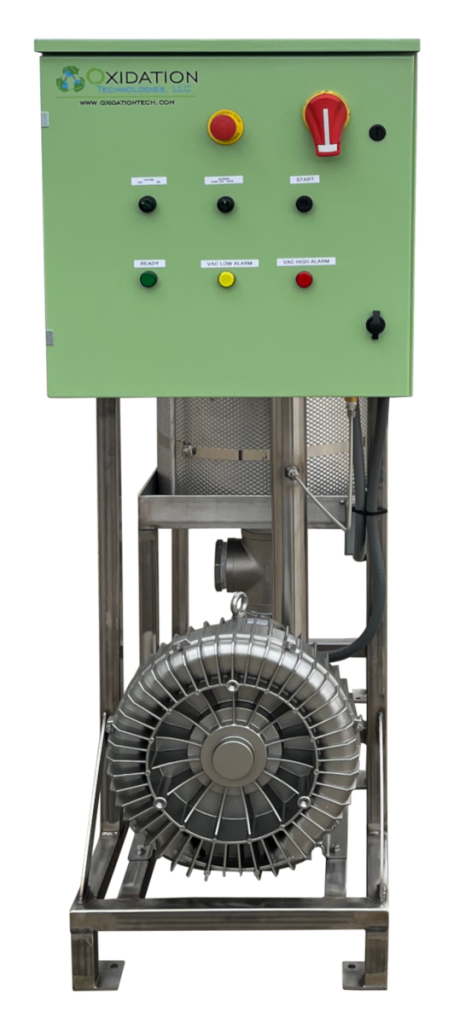

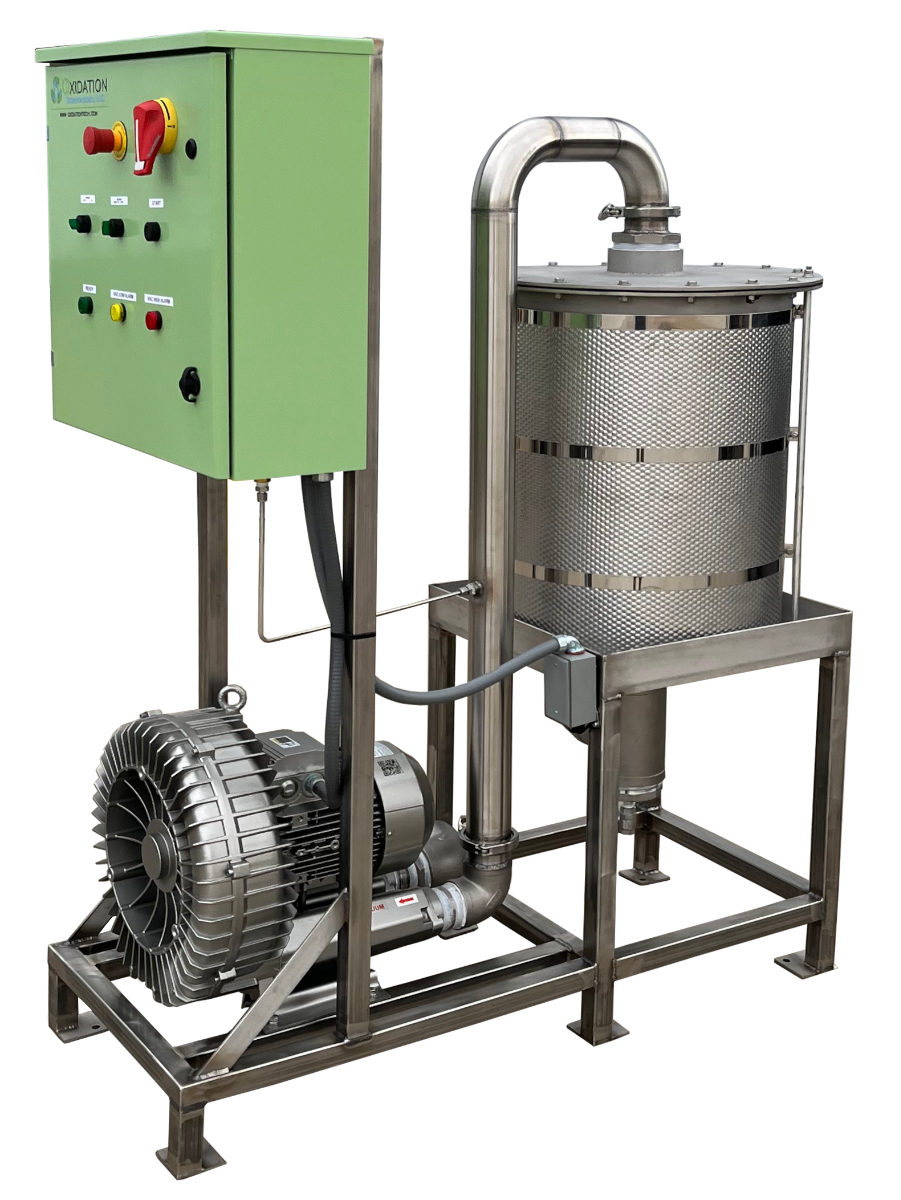

The CDU-10K (specifically the CDU-10K-BL when configured with blower) is a high-capacity ozone destruction system engineered to handle large industrial gas streams. It uses catalytic technology to convert ozone (O₃) into oxygen (O₂), eliminating the hazards associated with releasing ozone into the surrounding environment.
Key Features & Benefits
- High Flow Capacity — Built to handle up to 350 cubic feet per minute (10,000 LPM) of gas flow, making it suitable for demanding industrial applications.
- Integrated Blower — An industrial-grade blower pulls ozone-laden air through the system, ensuring consistent airflow and preventing exposure of the blower itself to high ozone concentrations.

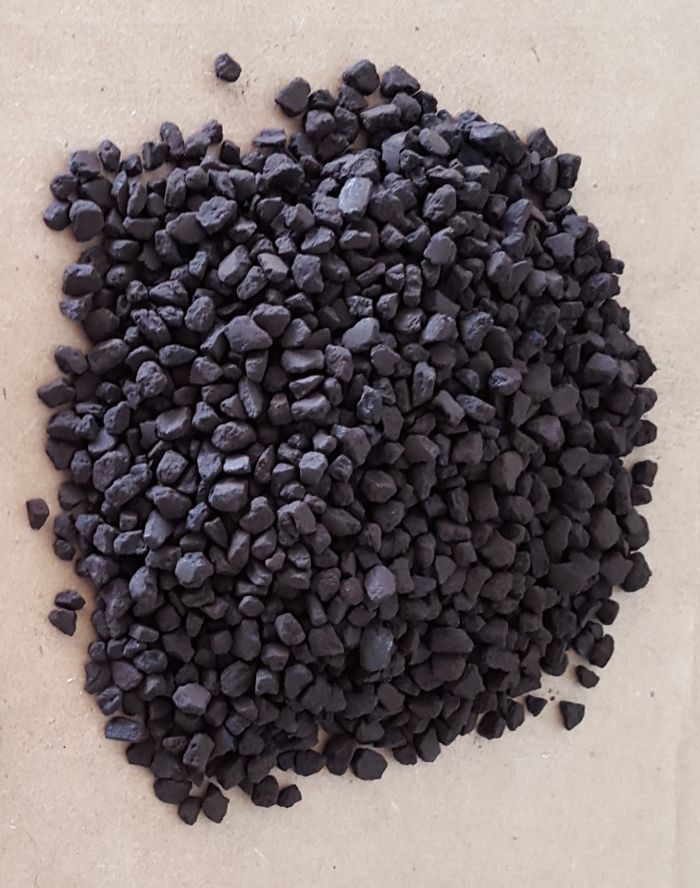

- Catalytic Destruction with Carulite-200 — Inside the unit, ozone contacts a specially designed catalyst that accelerates its breakdown to oxygen. The catalyst is replaceable and not consumed in the reaction, so maintenance is straightforward.
- Built-In Heater — A heater maintains the catalyst at a temperature that helps prevent moisture condensation, which can reduce efficiency.
- Automated Controls & Safety — The system includes control logic and alarms, and a vacuum switch ensures the blower is operating and pulling air as expected.
- Turnkey Design — Pre-wired, assembled, and tested at the factory, the CDU-10K can be installed quickly and integrated into existing systems with minimal effort.
Typical Uses
The CDU-10K shines in settings where large volumes of ozone must be managed:
- Water and wastewater treatment systems — especially where off-gas streams contain residual ozone.
- Surface treatment and coating lines, where ozone is purged from sealed chambers.
- Food processing or storage facilities that use ozone for sanitation but must protect workers and comply with air quality regulations.
- Environmental cleanup operations, such as soil vapor extraction, that generate ozone-rich off-gas.
How It Works

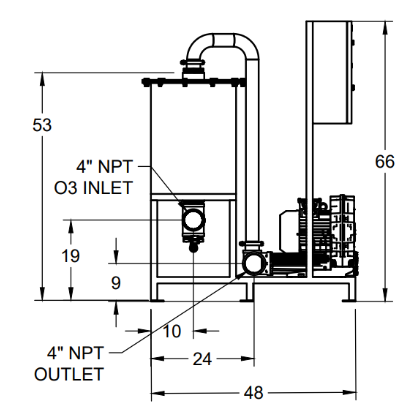

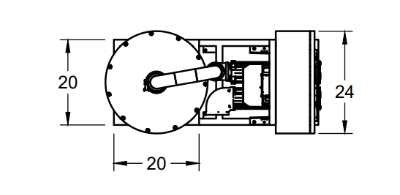

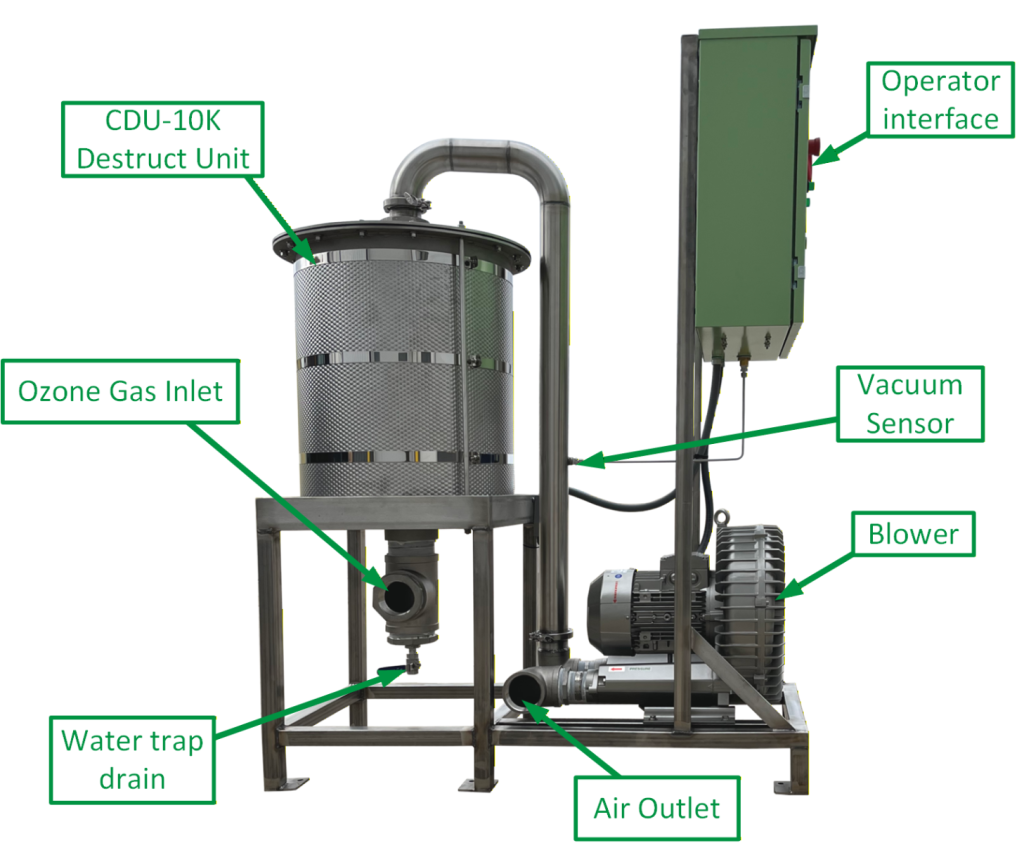

The CDU-10K is designed as a self-contained skid with inlet and outlet ports for easy connection. As ozone-laden air enters the unit, the blower draws it through a cylindrical stainless-steel chamber filled with Carulite-200 catalyst. Here, the ozone molecules rapidly degrade back to oxygen. The heater surrounding the catalyst helps prevent moisture from condensing—an important detail that keeps the catalyst working efficiently.
Maintenance & Longevity
Although the catalyst is durable, it can eventually become contaminated with dust, VOCs, or moisture. Replacement is simple: open the top access, remove the old media, and refill with fresh material.
Our service techs are here to help, contact us today for more information on service and repair!
Overall
Ozone is a powerful oxidizer—and a respiratory irritant if released unchecked. Industrial ozone destruct units like the CDU-10K aren’t just regulatory safeguards; they’re essential for worker safety and environmental protection. With a high-capacity blower and reliable catalyst technology, the CDU-10K delivers peace of mind without sacrificing performance
