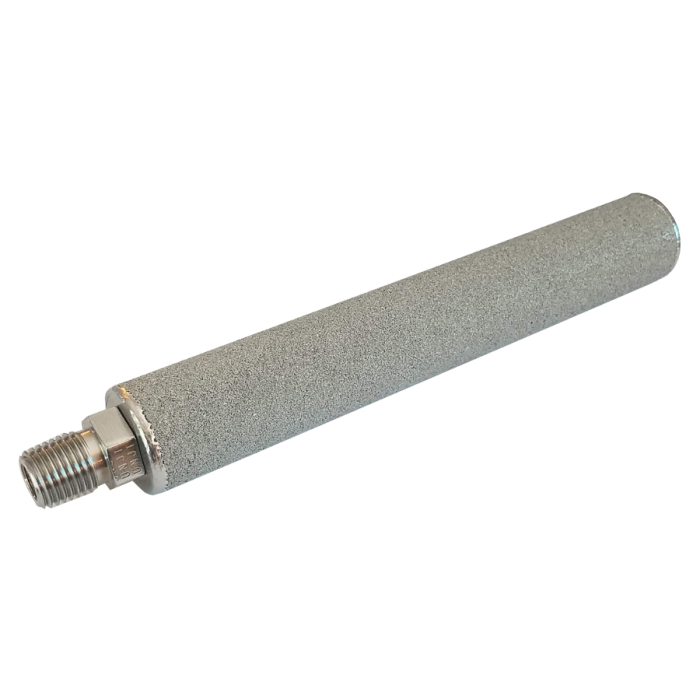

SS6-12 Diffuser

Sintered Stainless Steel Ozone Diffuser.  6" long x 1" diameter, 20-micron rating.  Bubble ozone into water at flow rates up to 5 CFM

14 In Stock
SKU
SS6-12 Diffuser
Material of construction
Stainless Steel
  $231.00
  • Buy 5 for
    $207.90
    each and save 10%
  • Buy 10 for
    $173.25
    each and save 25%

Description / SS6-12 Diffuser

Sintered Stainless Steel Diffuser is an excellent choice for transferring ozone gas into water via bubble diffusion.  6" long, 1" diameter sintered stainless steel with 20-micron rating creates tiny bubbles across the entire length of the diffuser.  Stainless Steel construction is both safe to use and provides excellent durability and longevity.

1/4" Male NPT connection provides a solid seal.  A hex nut is provided with the threads to ensure a tight seal and easy to remove if necessary.

A 5 CFM flow rate at open flow provides maximum flow potential from a compact design.  We do also offer custom lengths and can add length by the inch if necessary.

Our testing has shown that small bubbles are created and low and high flow-rates with the SS6.  There is no compromise on the excellent mass transfer when using the SS6 at any flow-rate.  The video below provides a great example of the SS6 in action at various flow-rates.  Most interestingly at lower flow rates the diffuser still achieves some bubble creation along the entire length.




Common Applications:

     -Groundwater remediation sparge point

     -Bottled water ozone contact tank

     -Municipal water treatment contact tank

     -Wastewater treatment



Installation:

The SS6 diffusers use 1/4" Male NPT threaded connections.  This offers a solid connection to ensure a leak free and long lasting connection.  The SS6 can be installed directly to a fitting in a pipe to dissolve ozone into a pipe, or can be placed at the bottom of a tank.  We have constructed manifolds for customers with multiple SS6 diffusers in the bottom of a tank to ensure ozone gas is distributed throughout the tank and diffusers are held firmly into place with stainless steel piping.

If used alone, we suggest using the CHK-4SV check valve to ensure water cannot back-flow to your ozone generator when turned OFF.

FEP Teflon tubing can be used to plumb ozone gas from your ozone generator to the SS6 diffuser.

Should you have any other specific install questions, please give us a call.  We would be glad to ensure your project is a success.



Additional Information

Dissolve Ozone with Bubble Diffusers

Dissolve ozone with bubble diffusers

Compare Diffuser to Venturi Injector

Bubble Diffuser

Venturi Injector

Fundamentals of Ozone Solubility

Fundementals of ozone solubility



Ozone Dosage vs Dissolved

Ozone dosage vs dissolved



Online Ozone Calculations

Online ozone calculations



Ozone Solubility Basics





More Information

Manufacturer Oxidation Technologies
Quickbooks Stock Level 14.000000
Quickbooks Stock Date Expected 2024-09-30 00:00:00
Material of construction Stainless Steel
Nominal Gas Flow Rate 0 - 5 CFM
Operating Pressure 1 - 125 PSI
Max Pressure 125 PSI
Gas Connections 1/4" Male NPT connection
Dimensions (LxWxH) 7" x 1"
Operational Temperature Range 0 - 100 deg C
Power Requirements none
Lead Time in stock
Warranty 1 Year
Country of Origin USA
Length x Diameter 6" x 1"
Micron Rating 20
Max Water Flow Rate 5 CFM
