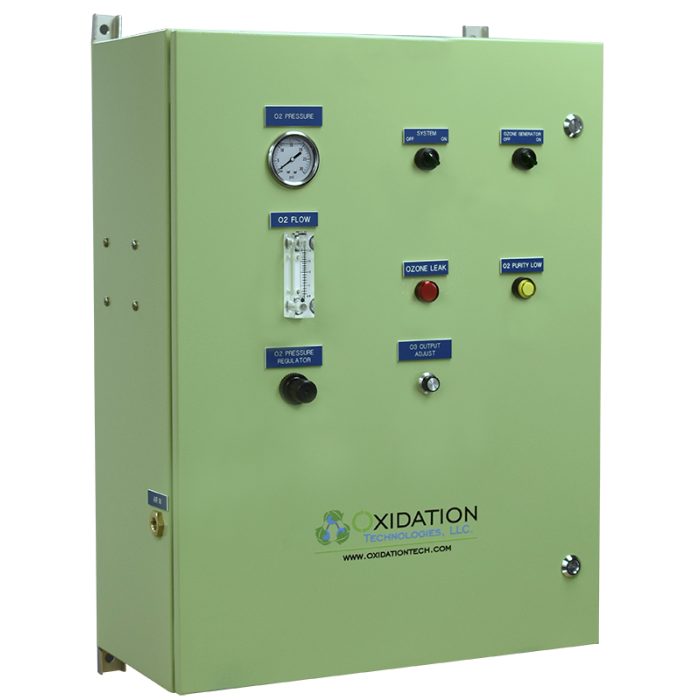

The OXG line of ozone generators are turnkey ozone generators with integrated oxygen concentrators. Simply plug into electrical power and produce both oxygen and ozone from one device. Easy to use, and powerful ozone generator for multiple industrial applications.
The OXG-10 produces 10 g/hr ozone from oxygen at 3.5% by weight. Only 4 LPM of oxygen is required to produce the 10 g/hr ozone.
-Turnkey ozone generator with integrated oxygen concentrator
-Produces 10 g/hr ozone from oxygen
-Produces 4 LPM oxygen for ozone production
-Can produce high concentrations of ozone at lower flow rates
-Flow meter is standard
-Adjustable output Standard
-Easy to install and operate
-Ultrapure water applications
Options are available for the OXG-10 to configure in any way you need. Standard options for ordering online are listed blow. For other options, you may require please contact our office for help to ensure we configure exactly to your needs.
-External Compressed Air - the OXG ozone generators incorporated an oil-less compressor to provide compressed for the ozone generator. In very humid or poor air quality environments it is preferred to use compressed air for your high-quality source. We will remove the compressor, and replace with air solenoid valve, pressure regulator, and 2-stage air filtration.
-Ozone Leak Sensor - for safety an ozone leak sensor should be used with every ozone generator. We can incorporate this sensor directly into the ozone generator.
|Call For Price||No|
|Ozone Output||10 g/hr|
|Feed Gas||Built-in O2 Concentrator|
|Nominal Gas Flow Rate||7 LPM oxygen to produce 10 g/hr ozone|
|Operating Pressure||5 PSI|
|Max Pressure||10 PSI|
|Cooling Method||Air Cooled|
|Corona Cell||Quartz , Stainless Steel|
|Gas Connections||1/4" compression fittings|
|Dimensions (LxWxH)||12" x 26" x 36"|
|Operational Temperature Range||35 - 95-deg F|
|Max O3 %||3% - 5%|
|Power Requirements||120 VAC, 60 Hz, 1-phase, 10amp (220 VAC optional)|
|Country of Origin||USA|
|Description||26" wide x 12" deep x 36" tall|
