The MAX Series Oxygen Generators are perfect for industrial and commercial applications and delivers 90-93% purified O2.  Max oxygen flow of 21 SCFH (10 LPM) at pressures up to 19 PSI.

Built in a lightweight turkey enclosure with an intetrated oil-less air compressor.  Only ambient air and electrical power are required for operation.  Produce oxygen at home and eliminate the oxygen cylinders forever!

The internal oil-less air compressor sits on 2 fans that help keep the operating temperature inside the box low.  A filtered air intake on the front draws in fresh air for cooling while keeping dust and debris to a miniumum.

Features:

- Self-Contained turnkey unit

- Lighweight Aluminum Enclosure - Provides simple and easy access for maintenance.  Individual panels are removed with Phillips head screws.

- Advanced Engineering

- Low O2 purity alert - Built-in oxygen purity meter measures oxygen purity in real-time.  An audible alarm, and indicator light alert of oxygen purities below 80%.

- Moisture trap - A unique feature of the MAX-series oxygen concentrators is an internal moisture separator installed on the compressed air line after the oil-less air compressor.  This feature is standard and available only on the MAX-series oxygen concentrators.  This allows the sieve beds on the oxygen concentrator to last longer with lower long-term maintenance.

- Oxygen Pressure Boost Option - Do you want to use an oxygen concentrator to supply your new hard shell hyperbaric chamber, but can't seem to keep the flow up when the pressure increases?  The standard 10 LPM oxygen concentrator may be rated to produce up to 20 psi, but when used to supply oxygen to hard shell hyperbaric chambers, the flow dwindles and will stop before getting there.  On top of the pressure within the chamber, the concentrator needs to overcome check valves as well, and there just is not enough pressure available.  A properly sized boost compressor can solve this problem and allow any oxygen concentrators you have available to provide the pressure you need. This boost compressor is a good option if you have a number of concentrators that are not doing the job of getting oxygen into your chamber.  The O2 Boost comes with DISS fittings that are used with supplying hyperbaric chambers.

Maintenance:

Maintenance of the MAX-series oxygen concentrator is simple rare and cost effective.  Expect a long-life of the MAX oxygen concentrator if simple maintenance is followed.

To see these parts and how they are replaced check out the video imbedded in this page below.

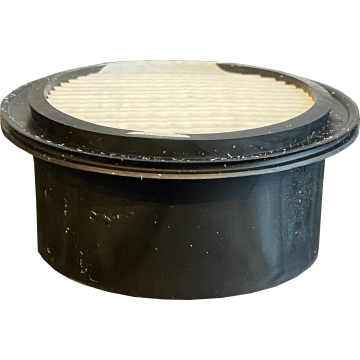

Inlet air filter- Attached to the oil-less air compressor to filter incoming air.  This filter should be replaced as needed (when dirty).  check monthly in dirty/dusty environments, check quarterly in normal clean environments.

Sieve beds- House molecular sieve material that separates the oxygen from the nitrogen.  This is replaceable as a full unit. This should be replaced every 2-years in normal environments.

Air CompressorLow O2 purity alert - Built Should be rebuilt every 8,000 hours of use.  This can be rebuilt with a rebuild kit we offer, or a complete replacement compressor can be purchased very cost effectively.

Product Characteristics:

Typical Applications:

Manufacturing:

- Glass Work/Blowing

- Brazing/Sodering/Jewelry

- Thermal/Chemical Oxidation

Environmental:

- Ozone (Generator) Feed Gas

- Waste/Water Treatment

- Environmental Remediation

Additional:

- Fish Farming

- Aquaponics

- Hydroponics

Downloads:

- User Guide
