UV-106-H Ozone Analyzer Rental
High range precision UV Ozone Analyzer for process ozone measurement. Measures ozone generator production at levels up to 20% by weight with resolution of 0.01%.
The UV-106-H is a high range ozone analyzer featuring ozone measurements up to 20% by weight to verify ozone generator production in process. Range of 0-20% by weight, or 0-14% by volume with resolution of 0.01%.

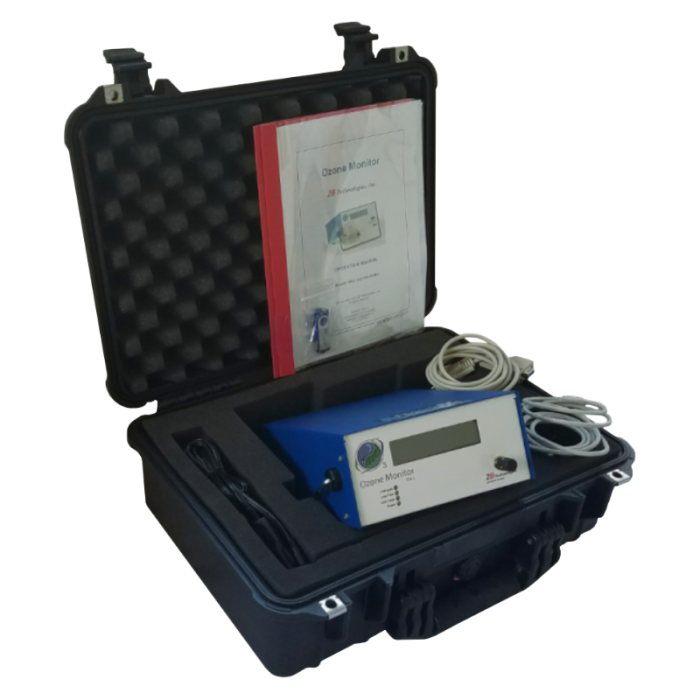

Bench mount ozone analyzer is compact and easy to use. The UV-106-H can be purchased in either the bench mount or NEMA enclosure.
Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream. A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp. This method of ozone detection will offer accurate detection of ozone at levels up to 20% by weight to measure output from an ozone generator accurately.
|Call For Price||No|
|Range||0-20% by weight, in oxygen or air, 0-14% by volume|
|Response Time||10 seconds|
|Sensor type||UV Analzyer|
|Power Requirements||12 VDC with supplied adapter|
|Field Replaceable Battery||Yes|
