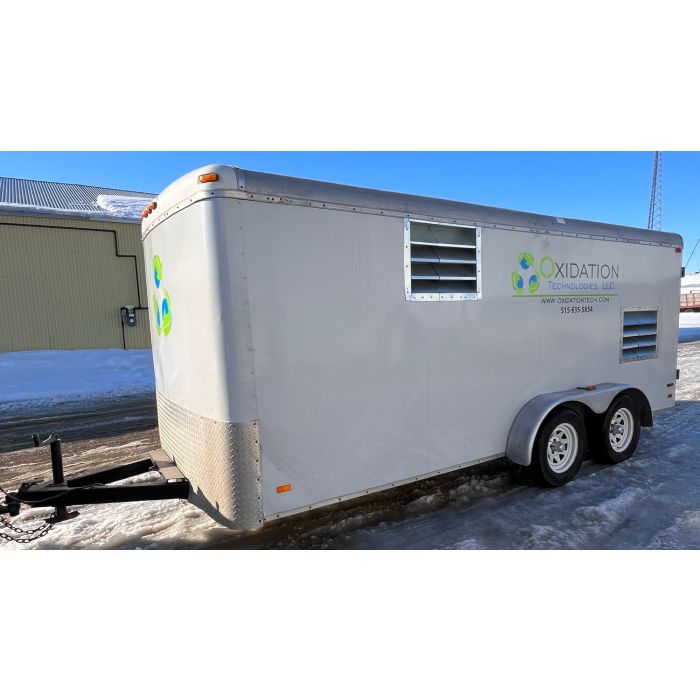

Trailer #7 - 550 g/hr O3
Ozone trailer available for rent. 550 g/hr (29 lb/day) ozone production. Turnkey trailer requires only electrical power for operation. Available for rent by the month.
Ozone generation trailer as set-up. Available with ozone distribution manifold or ozone injection system for specific applications. Call for details.
Monthly Rental Rate
Call for availability and pricing on long-term rentals.
- SKU
- Ozone Trailer #7
- Size
- 18' long trailer
Related Products
Description / Trailer #7 - 550 g/hr O3
This ozone trailer is built and configured as a turnkey ozone generation system. However, this trailer can be used for many applications for pilot tests or short-term ozone applications. If necessary we can also configure the trailer specifically for your application if custom control or delivery equipment is required. Call us for details on the best setup for your process.
Ozone distribution manifold available for groundwater remediation applications for in-situ remediation.
Ozone injection system to dissolve ozone gas into water for water treatment applications.
Ozone Trailer Specifications:
- 550 g/hr ozone generation (29 lb/day)
- Ozone generated at 7% by weight
- 200 SCFH oxygen production
- 30 PSI continuous oxygen/ozone pressure
- Trailer size = 8' wide x 16' long trailer
- 15 HP Rotarey Screw Air Compressor
- 230 VAC, 3-phase power, 100 amp circuit (77 amp continuous load)
- 460 VAC, 3-phase power available with optional transformer
Ozone rental trailer features:
-550 g/hr Ozone Generation Trailer System (29 lb/day)
-45 PSI operational pressure for full ozone and oxygen flow
-Bumper hitch trailer with walk-in door and rear doors
-Rotary Screw Air compressor - minimal maintenance
-Refrigerant air dryer keeps air dry and system reliable
-Control system with touch screen HMI for valve timing
-All operational system logged
-Digital oxygen mass flow meter shows oxygen/ozone flow remotely
Ozone System Controls:
The Ozone System will be controlled by one central control system. This will control all components automatically for reliable and safe operation. Operation of system is performed with simple to use touch screen interface. All well timing, operation, and logging information is also performed on this touch screen panel for convenience.
It is also possible to operate and monitor the system remotely via a telemetry system. The system can connect to the internet via wireless, wired, or cellular data connection. When operating the system remotely every operational parameter available while at the actual control panel is also available remotely. Logged data can also be downloaded remotely for reporting purposes. The system can be set-up to send e-mails for alarm conditions. Screens shown below are all visible and completly controllable via the remote telemetry.
HMI Main Screen
Main operation of HMI screen for system operation. All primary controls are controlled and viewed from this screen. Main components are turned ON/OFF on this screen.
HMI Alarm Screen
Alarm screen for control system. Set operation limits and alarms using this screen:
Well Timer Screen
Well timing is selected on this screen, accumlated timer data also indicated on this screen.
Alarm Log Screen
A log of past alarms is shown on this screen. This allows historica data to be viewed to identify and troubleshoot alarms.
Trend Graph Screen
System operation trends are shown on the trend graph screen. This allows real-time data and past data on operational parameters to be shown. This allows quick viewing of past data.
Downloads:
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Unit Features | -550 g/hr ozone production (29 lb/day) - 200 SCFH oxygen production |
| Rental Period | Monthly |
| Size | 18' long trailer |
| Max Pressure | 100 PSI |
| Model | Rental Trailer #3 |
| Operating Pressure | 50 PSI |
