OEM style Process Ozone Analyzer for high range ozone measurement.  Measures ozone concentration real-time to verify proper system operation and process control.  Measures ozone up to 20% by weight or 400 g/m3.

Call For Price

The Model 452 is a microprocessor-based gas sensor for measuring high concentrations of ozone in oxygen or air with accuracy and dependability.

The measurement principle is based on the absorption of UV light at 254nm. Readings are available in % by weight, or grams/Normal cubic meter. Temperature and pressure compensation up to 3 Bar Absolute is a standard feature (with pressure compensation up to 3 Bar Absolute dependent upon range). Its compact size allows for easy installation in process applications.

The flow pattern is a straight through design (eliminating turns and elbows), reducing exposed surface area. The 452 uses detectors which have a very narrow band of spectral sensitivity, eliminating the need for UV band pass filters which are subject to deterioration by UV or humidity.

Two detectors are used: one for the ozone measurement, and the other to compensate for changes in UV lamp intensity. This unique design provides a sensor which will operate for extended periods without calibration or maintenance.

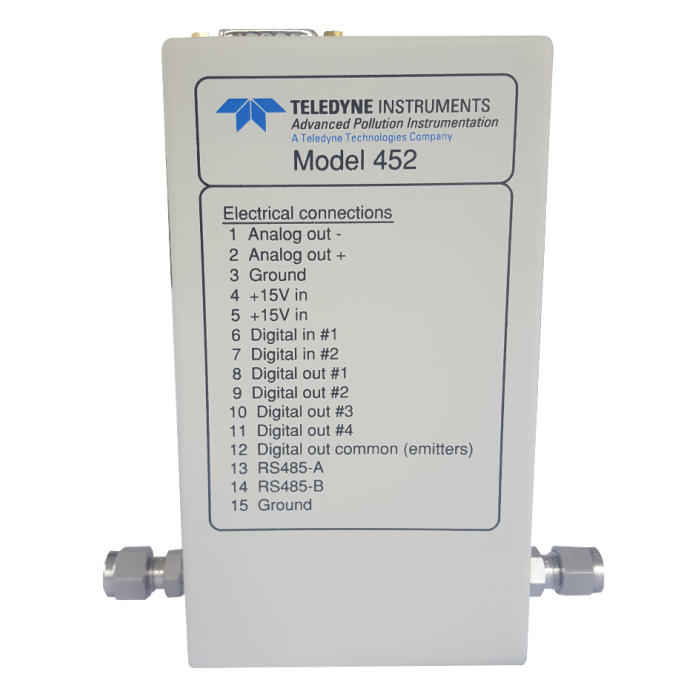

The sensor offers both analog and RS485/RS232 outputs as well as 4 opto-isolated status outputs to indicate sensor operation or failure modes. Input/output and power input connections are made through the 15-pin D-sub connector. For high purity applications, the 452 manifold is available in 316L, 10Ra finish, and 1/4” VCR fittings.

Features

  • Standard one year warranty
  • Compact design (12.3 in2 footprint)
  • Ranges from 0 - 5% to 0 - 20% w/w
  • Temperature and Pressure Compensation
  • Units of weight % or grams/Normal m3
  • Narrow Band detector eliminates need for UV filters
  • Analog and RS485/RS232 outputs
  • Status outputs to monitor operation
  • Available for high purity applications



Specifications
Ranges: 0–5, 0–10, 0–15, 0–20% w/w 0–100, 200, 300, 400 g/Nm3
Pressure compensation: Up to 3 Bar absolute
Proof pressure: 115 psia
Repeatability: 1% of full scale
Response time: 2 seconds to 95%
Zero drift: 1% Full Scale/month (non-cumulative)
Operating temperature range: 5 - 45° C
Wetted materials: 316 Stainless Steel, PTFE, Sapphire
Fittings: 1/4" stainless steel compression
Flow: 0.5 to 5 LPM
Power: +15 volts @ 1.5A max
Analog output: 0 – 5V Full Scale
Zero Cal: Contact closure input
Digital Outputs: Sensor OK, Lamp Low, Cell Dirty, Invalid Reading, (Opto-isolated)
Serial data Interface: RS485 or RS232
Dimensions including fittings (HxWxD): 5.13” (130.3mm) x 2.13” (54.1 mm) x 6.69” (169.9 mm)
Weight: 2.8 lbs. (1.27 kg)
Options: AC power adapter
High purity (VCR fittings, 316L, 10 Ra finish)
External Ozone Destructor
External Particulate Filter



Downloads:

API Model 452 Brochure

API Model 452 Manual

More Information
Manufacturer Teledyne API
Call For Price No
4-20 mA Output Yes
Range 0–5, 0–10, 0–15, 0–20% w/w 0–100, 200, 300, 400 g/Nm3
Relays 1 Relay
Maximum Range 0-500 ppm
Minimum Range 0-1 ppm
Accuracy 1% of full scale
Min, Max, Avg No
Voltage Output 0-5 V
Power Requirements 100 - 240VAC, 50/60 Hz
Datalogging No
Rechargeable Yes
Warranty 1 Year
