UV-100 Ozone Analyzer Rental

We no longer offer the UV-100 Ozone Analyzer Rental, however, we recommend checking out the UV-106-M Ozone Analyzer Rental because of their similar specifications.
SKU
uv-100_rental
Size
95 × 210 × 216 mm (3.75 × 8.25 × 8.50 in)

Options

Call For Price

Description / UV-100 Ozone Analyzer Rental

We no longer offer the UV-100 Ozone Analyzer Rental, however, we recommend checking out the UV-106-M Ozone Analyzer Rental because of their similar specifications.

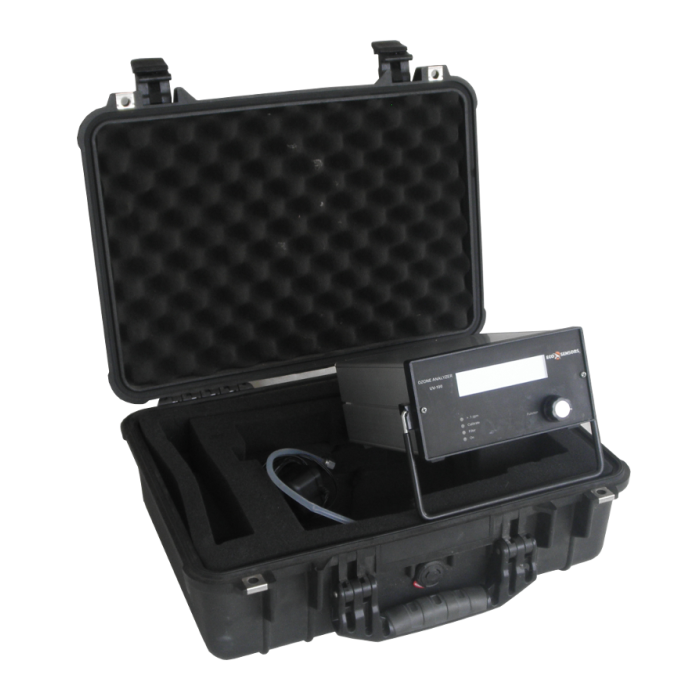

The UV-100 Ozone Analyzer is compact and easy to use.  This analyzer will measure ozone in ppm from 0 - 900 ppm.  Portable, anc ompact, this is a great device to use when you need to know exactly what your ozone levels are!

See full UV-100 Product page HERE



Rental Terms:

  • Pre-payment required for all rentals - payment can be made via credit card online
  • Rental period is for term paid for, shipping time to and from customers location is not included in rental term and is not billed
  • Shipping both to and from the customer is paid by the customer - Ground shipping is okay
  • Equipment gauranteed to arrive in working order, any damge to equipment will be billed to customer
  • Rental term can be extended at any time during the rental
  • Discounts for longer term rentals apply, arrangements must be made up front



The Eco Sensors model UV-100 ozone analyzer is for general purpose measurement of ozone in air. Its range is .01-900 ppm (v) with 2% accuracy, and it includes a built-in data logger. The UV-100 weighs only 2.1 kg (4.7 lb), it is powered by an AC adapter or 12 V external battery, and is equally versatile for the laboratory or for process monitoring. The outputs are digital display, 0-2.5 VDC and 4-20 mA. The instrument features LEDs to indicate calibration is due, the sample line filter should be replaced, and that the sampling area is above the danger limit of .1 ppm.



Specifications:

  • UV Source: 254 nm mercury lamp
  • Range: .01-900 ppm v/v in 3 ranges: 0-1.00 ppm, 0-10.0 ppm, 0-900.0 ppm
  • Outputs: Digital display. 0-2.5 V, 4-20 mA, data logging
  • Accuracy: 2%
  • Sampling time: 10 seconds
  • LED Indicators: On-off, Recalibrate, Change Filter, >.1 ppm at sample area
  • Size: 95 × 210 × 216 mm (3.75 × 8.25 × 8.50 in)
  • Weight: 2.1 kg (4.7 lb)
  • Power requirement: 12 VDC at 400 mA.
  • Warranty: One year

Downloads:

UV-100 Manual

Links:

 EcoSensors Calibration information

 General Calibration Information

Ozone Information

More Information

Manufacturer Eco Sensors
Call For Price No
Size 95 × 210 × 216 mm (3.75 × 8.25 × 8.50 in)
Max Pressure 0 PSI
Model EcoSensors
Operating Pressure 0 PSI - uses internal sample pump to pull sample

We found other products you might like!

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
UV-HCR High Concentration Ozone Analyzer
Call For Price

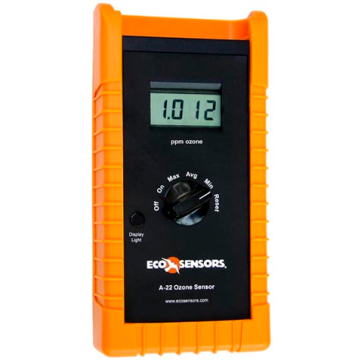

A-22 Ozone Detector
