Oxygen Purity Meter

Oxygen purity is important for ozone production.  The better the oxygen purity going into your ozone generator the more ozone can be produced.  Therefore, being able to know the purity of the oxygen going into your ozone generator is important.  We recently released two oxygen purity meters that are able to measure 0-100.0% oxygen.  These units are designed to be placed in line after your Oxygen Generator and before Ozone Generator to measure the purity of oxygen coming from the Oxygen Generator and into your Ozone Generator.  The inlet and outlet connections are 1/2” Female NPT Fittings. Both models are equipped with a relay alarm for low oxygen purity as well as a 0-10 VDC and 4-20mA output signal.

O2 Purity Meter – Low Flow

This unit is capable of measuring 0-100% oxygen in flows at 6- PSI and inline flows up to 12 SCFH (6 LPM).  There are 3 color indicators lights that indicate the current oxygen levels:
Green = above 85%
Yellow = 75% – 85%
Red = Below 75%

An optional upgrade on the O2 Purity Meter Low Flow model would be an LCD display to show current oxygen levels.

O2 Purity Meter – High Flow

This unit is capable of measuring 0-100% oxygen in flows at 100 PSI and inline flows up to 127 SCFH (60 LPM).  This unit is comes with an LED integrated display that shows the current oxygen readout in a resolution of 0.1%.

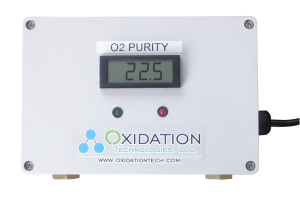

Oxygen Purity Meter High Flow with display

Optional Add-ons

Both units have a few custom options that depending on your application might be beneficial.  The optional add-ons are:

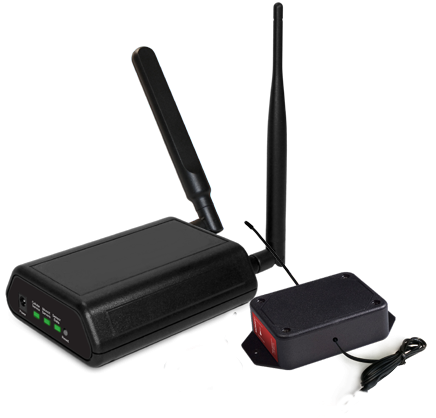

Wireless Monitoring & Data Logging Kit

This can be mounted next to your oxygen purity meter and connects to the internet which allows you to access the data from anywhere.  You can receive notification via text and e-mail alerts.

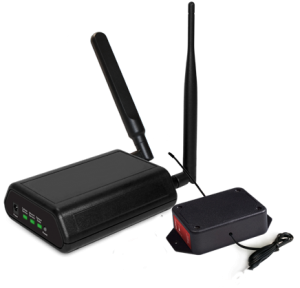

Wireless Monitoring & Data Logging Kit

Visual Strobe Light

A strobe would be installed on the unit as a visual indicator when oxygen purity is registering below 75%.

Audible Alarm

An alarm can be installed on the unit to sound when the oxygen purity is reading below 75%.

If you have questions on your current ozone system set up and how these oxygen purity meters would work in your set up, please contact us.
