Trailer #8 - 400 g/hr O3
Trailer #8 - 400 g/hr O3
Ozone trailer available for rent. 400 g/hr (21 lb/day) ozone production. Turnkey trailer requires only electrical power for operation. Available for rent by the month.
Ozone/oxygen output pressure of 30 PSI
Requires 120/240 VAC, 1-phase, 125 amp electrical service (98 amp continuous load)
Ozone generation trailer as set-up. Available with ozone distribution manifold or ozone injection system for specific applications. Call for details.
Monthly Rental Rate
Call for availability and pricing on long-term rentals.
- SKU
- Ozone Trailer #8
- Size
- 16' long trailer
Related Products
Description / Trailer #8 - 400 g/hr O3

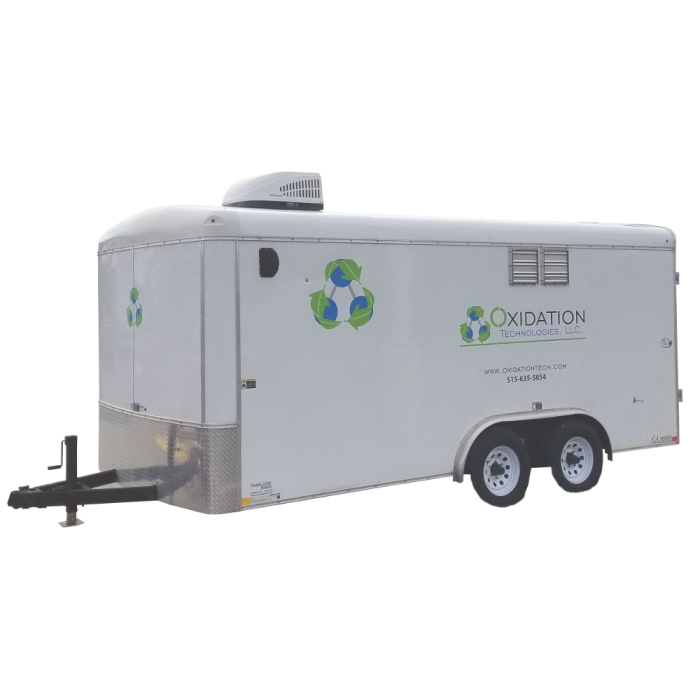

Turnkey ozone generation system built into a mobile, bumper hitch trailer for easy mobility and set-up on site. All equipment for ozone generation integrated into this trailer with fully automated operation.
400 g/hr (21 lb/day) ozone production rate.
Electrical power requirement of 120/240 VAC with neutra, 1-phase, 125 amp circuit. 98 amp power consumption at max ozone output.
Ozone Trailer Specifications:
- 400 g/hr ozone generation (21 lb/day)
- 50 LPM oxygen flow-rate
- 45 PSI oxygen pressure
- 30 PSI ozone output pressure to point of use
- Turnkey, automated operation with touchscreen HMI for operation
- Trailer size = 8' wide x 16' long trailer, bumper hitch
- Requires 120/240 VAC, 1-phase power, 125 amp circuit
- 10 HP Rotary Screw air compressor
- 9,000 BTU Closed Loop chillers (2 chillers built-in)
Ozone rental trailer features:
-400 g/hr Ozone Generation Trailer System (21 lb/day)
-Turnkey, automated operation requiring only electrical power for operation
-Redundant ozone generators and water chillers, two separate ozone generator inverters, transformers, cells used for redundancy
-Redundant closed loop water chillers used, one with each ozone generator for true redundant ozone generation capacity
-Bumper hitch trailer with walk-in door and rear doors
-Rotary screw air compressor, Ingersoll Rand, 10 HP, minimal maintenance
-30 PSI operational pressure for full ozone and oxygen flow
-Bumper hitch trailer with walk-in door and rear doors
-Refrigerant air dryer keeps air dry and system reliable
-Control system with touch screen HMI touchscreen
-All operational system logged
Ozone System Controls:
The Ozone System will be controlled by one central control system. This will control all components automatically for reliable and safe operation. Operation of system is performed with simple to use touch screen interface. All well timing, operation, and logging information is also performed on this touch screen panel for convenience.
HMI Main Screen
Main operation of HMI screen for system operation. All primary controls are controlled and viewed from this screen. Main components are turned ON/OFF on this screen.
HMI Alarm Screen
Alarm screen for control system. Set operation limits and alarms using this screen:
Alarm Log Screen
A log of past alarms is shown on this screen. This allows historica data to be viewed to identify and troubleshoot alarms.
Trend Graph Screen
System operation trends are shown on the trend graph screen. This allows real-time data and past data on operational parameters to be shown. This allows quick viewing of past data.
Electrical Power:
Trailer set-up to operate on 120/240 VAC power with neutral, 1-phase power 125-amp circuit. 98 amp power consumption at max ozone output
This trailer can be configured to operate on 3-phase power, either 230 or 460 VAC. This is our most versatile trailer and can function on a wide variety of electrical power configurations.
Downloads:
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Unit Features | -400 g/hr ozone production (21 lb/day) -100 SCFH oxygen production -30 PSI Ozone/Oxygen output pressure -Requires 120/240 VAC, 1-phase with neutral, 125 Amp circuit |
| Rental Period | Weekly |
| Size | 16' long trailer |
| Model | Rental Trailer #8 |
| Operating Pressure | 30 PSI |
