OEM-3 Ozone Controller
OEM-3 Ozone Controller is great for integrated solutions or use within your ozone generator. A simple and effective method to control ozone levels, or shut down equipment in the event of an ozone leak.
The OEM-3 is a 12/24 VDC powered board that offers a 4-20 mA output.
For reference, the OEM-1 is a 120 VAC powered device that offers a 0-1 VDC output.
For reference the OEM-2 is a 12/24 VDC powered device that offers a 4-20 mA output signal.
- SKU
- OEM-3
- Size
- 3.25-in wide x 3.25" long x 0.875" tall
-
Buy 5 for $410.00each and save 2%
-
Buy 10 for $395.00each and save 6%
Description / OEM-3 Ozone Controller
Quantity Pricing:
1-4 = $320 each
5-9 = $310 each
10+ = $295 each
*Call for quantity discounts
The model OEM-3 is a system to control ozone generators and alarms based on an adjustable ozone concentration set point. It is designed to work with plug-in sensor modules for 0-0.1 ppm, 0-1.0 ppm, and 0-10.0 ppm. These are specified when ordering by putting the ppm range after the model number. For example, a 0.1 ppm OEM-3 board system would be OEM-3-.1 and the replacement sensor module for it would be OEM-O3-.1. The sensors modules can also be located at a distance from the OEM-3 boards by 6ft or 25ft (2 or 8 meter) cables. These are readily available DIN M/F 5 pin extension cables.

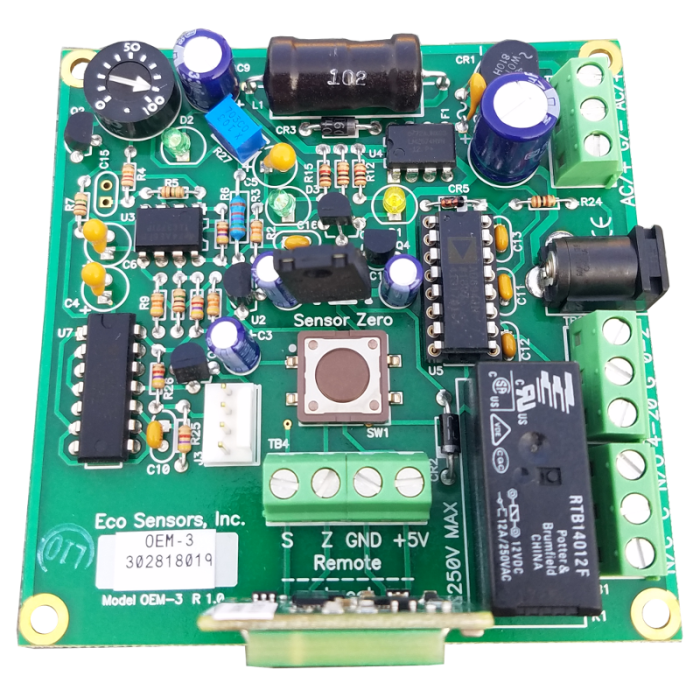

One component of the OEM-3 system is the base board which incorporates the power supply, final signal processing, set-point controls, and the output relay. The other component is the sensor mounted with its associated electronics in a cylindrical DIN plug. This is pre-calibrated in our lab so that the sensor module and main board module together work as a calibrated system. If the sensor module is damaged, it is simply replaced by another precalibrated module.
When it comes to calibrating your OEM-3 Ozone Controller, you should replace your sensor annually.
OEM-3 Ozone Sensor Replacement:
Sensor replacement on OEM-3 is simply plug-n-play. Remove the old SM-3 and replace with new.
Application Notes/Diagram:
Downloads:
OEM-3/SM50 Wiring Terminals Cross-Reference
Links:
EcoSensors Calibration information
More Information
Manufacturer | Eco Sensors |
---|---|
Gas | Ozone (O3) |
Resolution | 0.01 ppm |
Integrated Relays | Yes |
Response Time | 8 seconds |
Sensor type | Electrochemical |
Sampling Method | Diffusion |
Alarms | NO/NC relay for control purposes |
Operational Temperature Range | 35 - 100 deg F |
Operational RH Range | 0 - 85% RH |
Power Requirements | 12 VDC |
Size | 3.25-in wide x 3.25" long x 0.875" tall |
Field Replaceable Battery | No |
Warranty | 1 Year |
Audible Alarm | No |
Calibration | Replace with Pre-Calibrated Sensor Annually |
Sensor Life | 1 Year |
Range | 0-0.1, 0-1.0 , or 0-10.0 ppm |
Unit Features | -Field Replaceable Sensor -User Settable Relay -4-20 mA Output |
Sensor Range | 0-0.1 ppm 0-1 ppm 0-10 ppm |
Sensor Range | 0-0.1 ppm (O3) 0-1 ppm (O3) 0-10 ppm (O3) |
