1KNT

1.5 g/hr ozone production from oxygen, or 0.82 g/hr ozone production from dry air

Great ozone generator for small applications and lab use.  Ozone Concentrations over 2.6% by weight are possible when ozone is produced from oxygen.

13 In Stock
SKU
1KNT
  $198.00

Description / 1KNT

The 1KNT Ozone Generator from Enaly is a high quality but low-cost ozone generator for small applications.  This is one of the best values in ozone generation on the market today.  We have had great reliability from these ozone generators and have continued to be impressed.  The 1KNT is an improved version of the previous 1000BT-12 Ozone Generator.

Can produce ozone from either oxygen or dry air.  Will also produce ozone under pressure or slight vacuum.  This is an extremely flexible ozone generator that is perfect for a wide variety of small-scale applications.

Ozone Concentrations over 2.6% by weight (38 g/m3) are possible when ozone is produced from oxygen.  Low flow rates of oxygen can be used, and high concentrations of ozone (relative to cost) can be produced.   Only 3 LPM oxygen flow is required to produce 1.5 g/hr of ozone.

Features:

  • Great value in ozone generators
  • Rugged and reliable construction with aluminum enclosure and high-quality ozone cell
  • No working noise, very quiet operation
  • High ozone output for energy and oxygen consumption
  • Adjustable ozone output from 0-100 % with integrated dial

Materials of Constructions:

  • Enclosure: Powder coated aluminum
  • O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Kynar



This ozone generator has no built in air pump so that it can use external feed-gas source of either oxygen, from an oxygen tank or an oxygen concentrator, or dry air (with the use of an external air pump).

The Ozone Output Regulating Dial allows precise ozone output adjustments (0~100%)

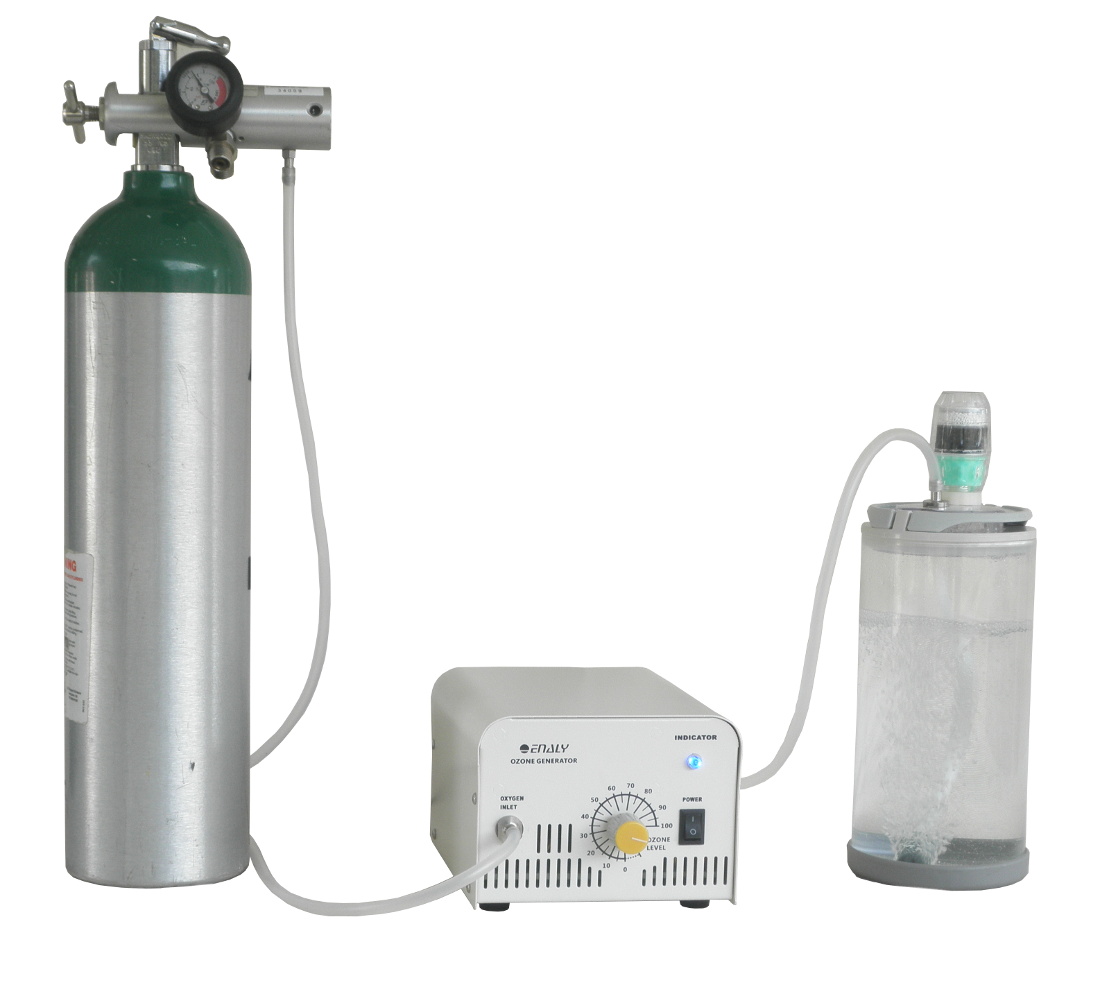

1KNT Used to Ozonate Water with the Ozone Chamber.

 Ozonate water with Ozone Chamber

The 1KNT has many uses.  It can be used in a lab, industrially, or even at home.  There is no air pump in the 1KNT, this allows for use of clean, dry, compressed air or oxygen.  Picture shown shows an oxygen bottle readily available at any medical supplier.  An oxygen concentrator can also be used for long term use.

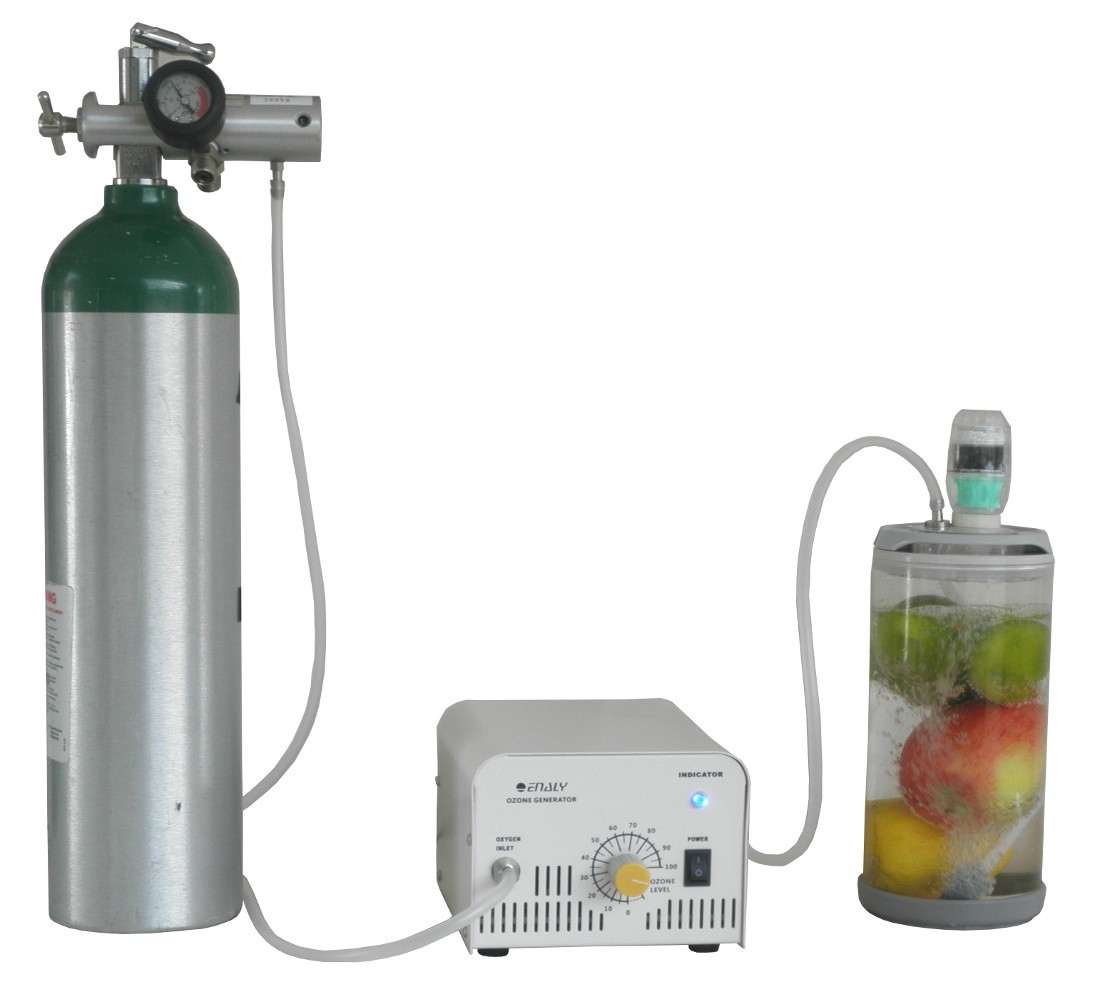

1KNT Used to Sanitize Fruits with the Ozone Chamber.

Ozonate Fruit and Vegetables for safety



Produce your own Ozonated Olive Oil using the 1KNT and the Ozone Chamber.

The 1KNT is a great tool to produce your own Ozonated Olive Oil.  Here we show the 1KNT used with the Ozone Chamber to ozonate olive oil.  We show an oxygen bottle for simplicity, and this will work, however for long term use this may get costly.  It may be preferred to purchase a small oxygen concentrator to produce oxygen for the 1KNT.

1KNT making ozonated olive oil

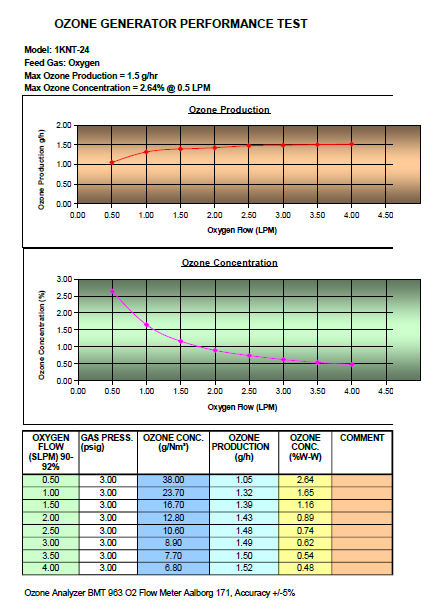

 Ozone Generator Performance Chart Oxygen Feed Gas:

1KNT ozone generator performance chart

 *Click to enlarge image

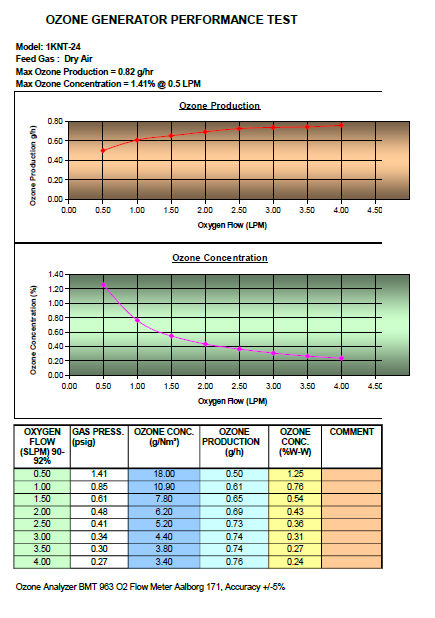

 Ozone Generator Performance Chart Dry Air Feed Gas:



1KNT Ozone Generator performance chart

 *Click to enlarge image



Common Applications:

  • Lab Applications
  • Pilot testing
  • Ozonated olive oil
  • Dental offices
  • Aquarium or small aquaculture application
  • Hydroponics
  • Aquaponics
  • Odor Removal
  • Spa water treatment
  • Swimming pools
  • Small cooling towers



Downloads:

1KNT Ozone Generator Manual

Enaly Series Brochure



1KNT Overview Video:



More Information

Quickbooks Stock Level 13.000000
Feed Gas O2 or Dry Air
Nominal Gas Flow Rate 4 LPM oxygen flow to produce 1.5 g/hr ozone
Operating Pressure 0-5 psi
Max Pressure 5 PSI max
Manufacturer Enaly
Cooling Method Air Cooled
Corona Cell Aluminum , Glass, Stainless Steel
Gas Connections 1/4" barbed fittings
Dimensions (LxWxH) 9.1" x 6.1" x 4.7"
Operational Temperature Range 35 - 95-deg F
Max O3 % Below 3%
Power Requirements DC24V/100mA ( AC (100V-240V 50-60Hz 40W) to DC adaptor is included )
Lead Time 2-Weeks
Warranty 1 Year
Country of Origin China
Description Enclosure Dimensions: 4.7-inch height x 6.1-inch width x 9.1-inch depth Generator Weight: 4 lb
Ozone Output

1.5 g/hr from oxygen

0.82 g/hr from dry air

Unit Features

- Adjustable ozone output from 0-100% with integrated dial
