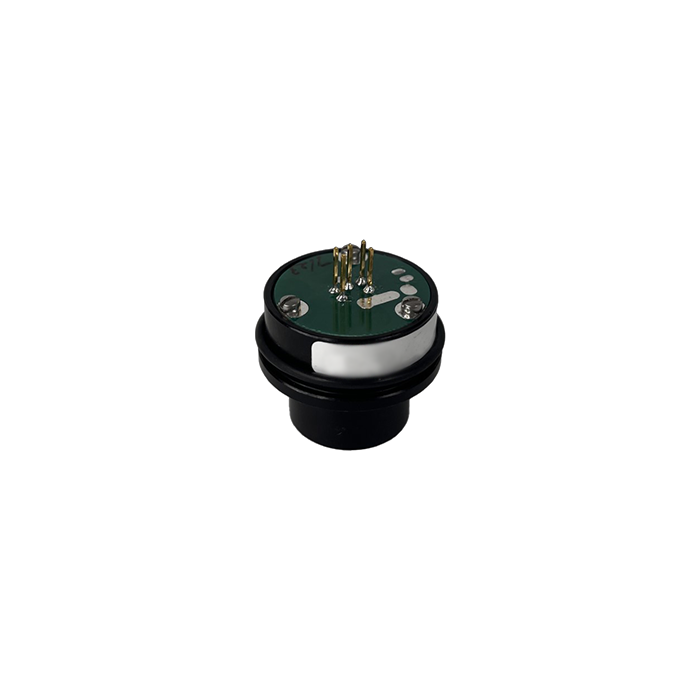

A12 Hydrogen Sulfide Sensor (00-0273)

E10-24 Hydrogen Sulfide Sensor only for the A12 Gas Transmitter.

Replaces Hydrogen Sulfide sensor, standard calibration range is 0-50 ppm for each sensor.

Hydrogen Sulfide Information


Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Hydrogen Sulfide sensors at a standard range of 0-50 ppm. Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need:
00-0234 - Hydrogen Sulfide 0-50 ppm

If you need the Sensing Module WITH an Auto-Test Generator, then you need:
00-0235 - Hydrogen Sulfide 0-50 ppm

Hydrogen Sulfide Information

More Information
Manufacturer ATI
Call For Price No
Gas Hydrogen Sulfide (H2S)
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-50 ppm
Minimum Range 0-10 ppm
Maximum Range 0-200 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
