Ozone Resistant Check Valves

Ozone Resistant Check Valves

Check valves prevent the back flow of water into an ozone generator and only allow gas flow in one direction.

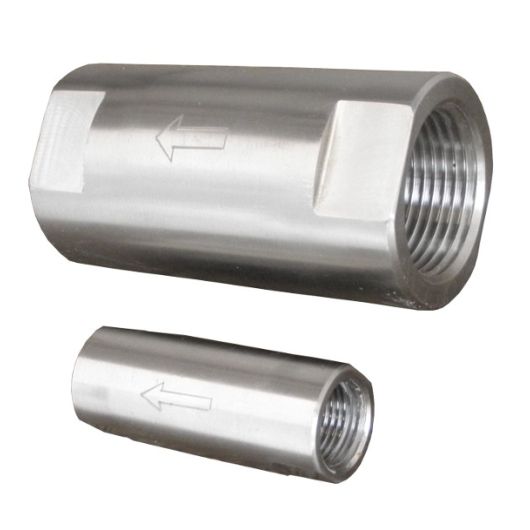

Stainless Steel Check Valves with Viton Seals
Product Size Price
CHK-12SV Check Valve
CHK-12SV Check Valve
3/4"
$58.50
CHK-16SV Check Valve
CHK-16SV Check Valve
1"
$69.50
CHK-4SV Check Valve
CHK-4SV Check Valve
1/4"
$35.00
CHK-6SV Check Valve
CHK-6SV Check Valve
3/8"
$35.50
CHK-8SV Check Valve
CHK-8SV Check Valve
1/2"
$39.50
CHK-12SV Check Valve

CHK-12SV Check Valve

$58.50

Size

3/4"
View Details
CHK-16SV Check Valve

CHK-16SV Check Valve

$69.50

Size

1"
View Details
CHK-4SV Check Valve

CHK-4SV Check Valve

$35.00

Size

1/4"
View Details
CHK-6SV Check Valve

CHK-6SV Check Valve

$35.50

Size

3/8"
View Details
CHK-8SV Check Valve

CHK-8SV Check Valve

$39.50

Size

1/2"
View Details



This check valve is completely serviceable and rebuild-able.  The only sealing material is a Viton O-ring.  This O-ring is easily replaceable is ever necessary.  The body is one piece and requires no seal for the body.  Only the O-ring is a sealing surface.  This makes the CHK-SV check valve the most reliable check valve over the long term.



Kynar Check Valves with Viton Diaphragm
Product Flow Diameter Size Price

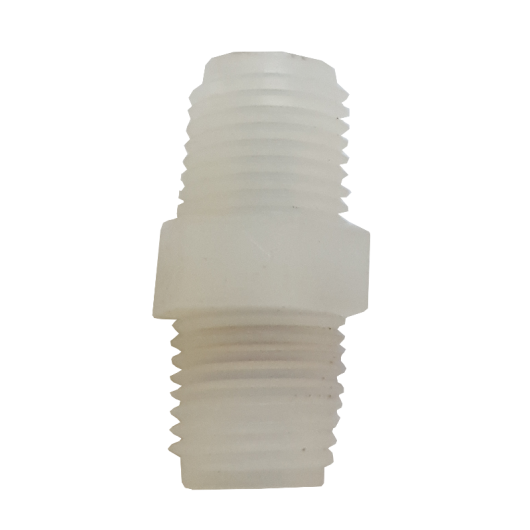

CHK-4K Check Valve
CHK-4K Check Valve
0.1875" 1/4" Male NPT
$11.74

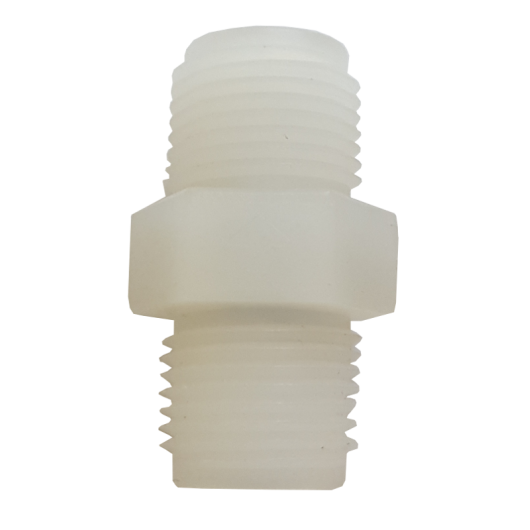

CHK-6K Check Valve
CHK-6K Check Valve
0.25" 3/8" Male NPT
$12.51

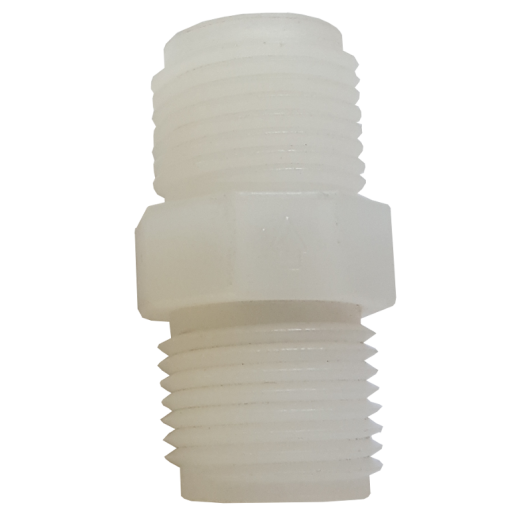

CHK-8K Check Valve
CHK-8K Check Valve
0.3434" 1/2" Male NPT
$14.11
CHK-4K Check Valve

CHK-4K Check Valve

$11.74

Flow Diameter

0.1875"

Size

1/4" Male NPT
View Details
CHK-6K Check Valve

CHK-6K Check Valve

$12.51

Flow Diameter

0.25"

Size

3/8" Male NPT
View Details
CHK-8K Check Valve

CHK-8K Check Valve

$14.11

Flow Diameter

0.3434"

Size

1/2" Male NPT
View Details



Kynar PVDF (polyvinylidene fluoride) is an ozone compatible material that has a cloudy off-white appearance.  These fittings are known for being extremely durable and have outstanding aging resistance when used with ozone.

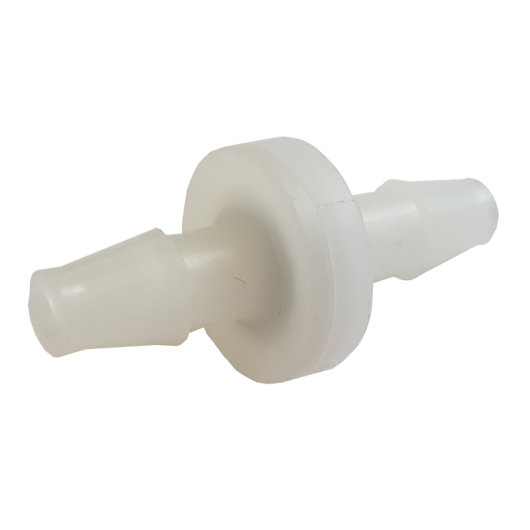

Kynar Check Valves with Viton Diaphragm
Product Size Price
CHK-4B Check Valve
CHK-4B Check Valve
1/4" Barb
$5.95
CHK-6B Check Valve
CHK-6B Check Valve
3/8" Barb
$9.50
CHK-4B Check Valve

CHK-4B Check Valve

$5.95

Size

1/4" Barb
View Details
CHK-6B Check Valve

CHK-6B Check Valve

$9.50

Size

3/8" Barb
View Details



Made with Kynar material and Viton diaphragm for ozone compatibility. These barbed check valves can easily connected to your tubing for inline water protection of your ozone equipment.
