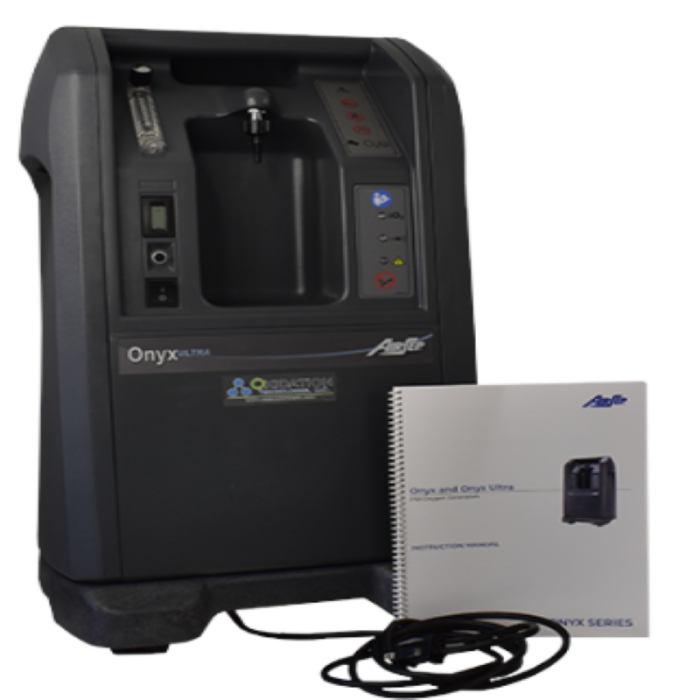

Onyx Ultra
21 SCFH oxygen production at 20 PSI is produced by the Onyx Ultra oxygen concentrator module.
Place your order today and we will ship it as soon as possible.
- SKU
- ONyx Ultra
Related Products
Description / Onyx Ultra
Specifically designed for reliability, energy efficiency, and ease-of-use, there are thousands of Onyx PSA Oxygen Generators currently in use throughout the world. The Onyx’s reliability, low noise level, and ability to deliver up to 95% oxygen concentration make it a perfect fit for many applications.
Features:
-Self-Contained
-Transportable
-Advanced Engineering
-Easy to Install and Maintain
-Low Operating Cost
Replacement Parts:
| Product | Listing Description | Price |
|---|---|---|
 10 LPM Flowmeter
|
10 LPM Flowmeter for Onyx Ultra AirSep Part Number: FM056-1 |
$15.00
|
 8 amp Circuit Breaker
|
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus AirSep Part Number: CR001-1 |
$8.00
|
 Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
|
Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra AirSep Part Number: CC012-8 |
$12.00
|
 Brass Compression Nut
|
Brass compression nut AirSep Part Number: F0135-2 |
$4.00
|
 Heat Exchanger
|
The heat exchanger reduces the temperature of the compressed air. The heat exchanger located at the bottom center of the compressor. AirSep Part Number: HX002-2 |
$10.00
|
 Onyx Ultra Sieve Beds
|
Replacement set of 10L Onyx Ultra beds for the Onyx Ultra Oxygen Generator. AirSep Part Number: BE186-2S |
$390.00
|
 Rebuild Compressor Kit for the Onyx or Topaz
|
Replacement Trigon compressor kit for the Topaz Oxygen Generator. AirSep Part Number: CO012-11 |
$62.00
|
 Solenoid Valve Rebuild Kit
|
Rebuild Solenoid Valve Kit for the Onyx and Topaz AirSep Part Number: VA034-1 |
$20.00
|
10 LPM Flowmeter
Listing Description
10 LPM Flowmeter for Onyx Ultra
AirSep Part Number: FM056-1
8 amp Circuit Breaker
Listing Description
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus
AirSep Part Number: CR001-1
Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
Listing Description
Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
AirSep Part Number: CC012-8
Brass Compression Nut
Listing Description
Brass compression nut
AirSep Part Number: F0135-2
Heat Exchanger
Listing Description
The heat exchanger reduces the temperature of the compressed air. The heat exchanger located at the bottom center of the compressor.
AirSep Part Number: HX002-2
Onyx Ultra Sieve Beds
Listing Description
Replacement set of 10L Onyx Ultra beds for the Onyx Ultra Oxygen Generator.
AirSep Part Number: BE186-2S
Rebuild Compressor Kit for the Onyx or Topaz
Listing Description
Replacement Trigon compressor kit for the Topaz Oxygen Generator.
AirSep Part Number: CO012-11
Solenoid Valve Rebuild Kit
Listing Description
Rebuild Solenoid Valve Kit for the Onyx and Topaz
AirSep Part Number: VA034-1
Oxygen Pressure Boost Option:
Do you want to use an oxygen concentrator to supply your new hard shell hyperbaric chamber, but can't seem to keep the flow up when the pressure increases? The standard 10 LPM oxygen concentrator may be rated to produce up to 20 psi, but when used to supply oxygen to hard shell hyperbaric chambers, the flow dwindles and will stop before getting there. On top of the pressure within the chamber, the concentrator needs to overcome check valves as well, and there just is not enough pressure available. A properly sized boost compressor can solve this problem and allow any oxygen concentrators you have available to provide the pressure you need. This boost compressor is a good option if you have a number of concentrators that are not doing the job of getting oxygen into your chamber. The O2 Boost comes with DISS fittings that are used with supplying hyperbaric chambers.
Product Characteristics:
|
Performance Data: Product Flow Oxygen Delivery Pressure |
21 SCFH 20 PSI (138 kPa) |
| Product Concentration | Up to 95% |
| Product Dew Point | -100°F (-73°C) |
|
Dimensions (WxDxH) |
16 x 15 x 29 inches (40 x 37 x 72 cm) |
|
Weight |
56 lbs (25 kg) (Add 1 lb for 220 V Unit) |
|
Physical Connections Product Gas Outlet |
1/4" FNPT JIC-8 |
| Ambient Operating Conditions |
Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 40°F (4°C) and 112°F (44°C) |
| Control Power Requirements (Single Phase) |
120 V ~ ± 10%, 60 Hz, 6.0 A 220 V ~ ± 10%, 50 Hz, 3.0 A |
Typical Applications:
Manufacturing
-Glass Work/Blowing
-Brazing/Sodering/Jewelry
Environmental
-Ozone (Generator) Feed Gas
-Environmental Remediation
Additional
-Fish Farming
-Laboratory Experiments
-Aquaponics
-Hydroponics
| Product | Listing Description | Price |
|---|---|---|
 120/60 Compressor for Topaz or Onyx
|
Replacement compressor for the Topaz Oxygen Generator. Replacement for Topaz 120 V, 60 Hz unit after 12,000 hours AirSep Part Number: CO240-1 |
$225.00
|
|
8 amp Circuit Breaker
|
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus AirSep Part Number: CR001-1 |
$8.00
|
|
Brass Compression Nut
|
Brass compression nut AirSep Part Number: F0135-2 |
$4.00
|
 Caster Wheel for the Onyx, Onyx Plus and Onyx Ultra
|
Caster Wheel for the Onyx, Onyx Plus and Onyx Ultra AirSep Part Number: CS014-1 |
$50.00
|
|
Heat Exchanger
|
The heat exchanger reduces the temperature of the compressed air. The heat exchanger located at the bottom center of the compressor. AirSep Part Number: HX002-2 |
$10.00
|
 Onyx Sieve Beds
|
Replacement set of Onyx beds for the Onyx Oxygen Generator. AirSep Part Number: BE036-8S |
$393.00
|
|
Rebuild Compressor Kit for the Onyx or Topaz
|
Replacement Trigon compressor kit for the Topaz Oxygen Generator. AirSep Part Number: CO012-11 |
$62.00
|
|
Solenoid Valve Rebuild Kit
|
Rebuild Solenoid Valve Kit for the Onyx and Topaz AirSep Part Number: VA034-1 |
$20.00
|
120/60 Compressor for Topaz or Onyx
Listing Description
Replacement compressor for the Topaz Oxygen Generator. Replacement for Topaz 120 V, 60 Hz unit after 12,000 hours
AirSep Part Number: CO240-1
8 amp Circuit Breaker
Listing Description
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus
AirSep Part Number: CR001-1
Brass Compression Nut
Listing Description
Brass compression nut
AirSep Part Number: F0135-2
Caster Wheel for the Onyx, Onyx Plus and Onyx Ultra
Listing Description
Caster Wheel for the Onyx, Onyx Plus and Onyx Ultra
AirSep Part Number: CS014-1
Heat Exchanger
Listing Description
The heat exchanger reduces the temperature of the compressed air. The heat exchanger located at the bottom center of the compressor.
AirSep Part Number: HX002-2
Onyx Sieve Beds
Listing Description
Replacement set of Onyx beds for the Onyx Oxygen Generator.
AirSep Part Number: BE036-8S
Rebuild Compressor Kit for the Onyx or Topaz
Listing Description
Replacement Trigon compressor kit for the Topaz Oxygen Generator.
AirSep Part Number: CO012-11
Solenoid Valve Rebuild Kit
Listing Description
Rebuild Solenoid Valve Kit for the Onyx and Topaz
AirSep Part Number: VA034-1
What is Pressure Swing Adsorption (PSA):
Clean, dry compressed air is fed into the first molecular sieve bed. Nitrogen is adsorbed, while oxygen is allowed to flow through. When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed. As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere. Compressed air is once again fed into the first bed, and the process is repeated continuously. A constant flow of oxygen is reliably produced.
More information on How Oxygen concentrators Work available HERE
Downloads:
More Information
| Manufacturer | Air Sep |
|---|---|
| Listing Description | 21 SCFH @ 20 PSI |
| Internal Compressor | Yes |
| O2 Delivery PSI | 20 PSI |
| Nominal Gas Flow Rate | 21 SCFH |
| Operating Pressure | 20 PSI |
| Max Pressure | 20 PSI |
| Gas Connections | 1/4" FNPT JIC-8 |
| Dimensions (LxWxH) | 16 x 15 x 29 inches |
| Operational RH Range | NA |
| Operational Temperature Range | NA |
| Power Requirements | 120V ~ ±10%, 60 Hz, 6.0 A or 220V ~ ±10%, 50 Hz, 3.0 A |
| Lead Time | In Stock |
| Warranty | 1 Year |
| Country of Origin | USA |
| Oxygen Production | 21-24 SCFH |
| Description | Turnkey unit with built-in compressor |
