Seneca Ceramic Diffuser

The Seneca Ceramic Diffuser is designed for bubbling ozone gas into water for simple mass transfer of ozone gas into water.

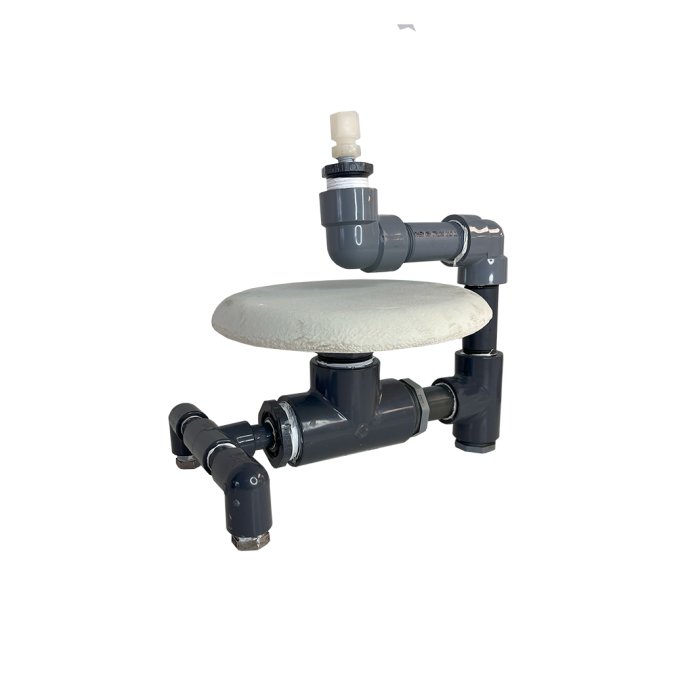

NOTE: The stand does not come with, that is just an example on how to use it

$280.00

Comparison of a sintered stainless steel diffuser with a ceramic diffuser achieving dissolved ozone in 50 gallons of water using a 45 g/m3 ozone concentration at a 4 LPM flow rate:

Time (min):  DO3 Ceramic:  DO3 SS6-7 SS:
1 0.18 0.13
2 0.32 0.23
3 0.44 0.35
4 0.7 0.4
5 0.81 0.5
6 1.01 0.6
7 1.12 0.7
8 1.22 0.75
9 1.35 0.8
10 1.4 0.85



PCD 4 Diffuser:

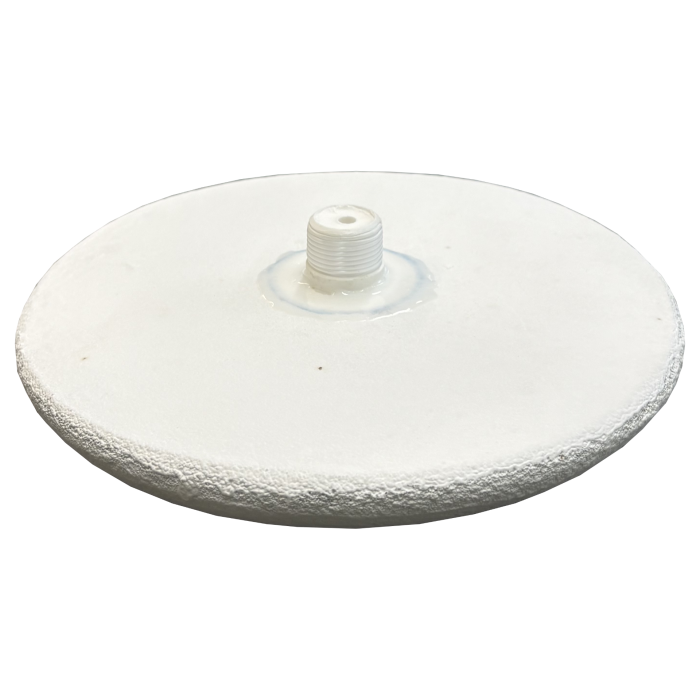

The PCD 4 diffuser is an excellent choice for ozone/oxygen diffusion because it has superior compatibility with ozone, is able to operate effectively at very low pressure, and has a very wide flow range. The entire unit is composed of ceramic with no components that are oxidized by ozone. Once submerged, it requires only 5 psi in addition to the head pressure to produce a uniform bubble curtain. The low operation pressure is perfect for ozone applications because it eliminates the need for high pressure ozone. Gas flow range is from 0 to 40 Liters/minute. Lower flow rates have a higher Gas Transfer Efficiency. For short water columns (less than 3 feet), or for critical applications where the highest efficiency is needed, it is recommended to keep the gas flow under 10 Liters/minute.

When multiple PCD 4 diffusers are used on one supply line, individual flow control is advised to ensure even distribution to each diffuser.

- All Ceramic Body

- 225 mm diameter

- Corrosion resistant

- Durable structure

- ¾” NPT ceramic inlet port



Ceramic Diffuser Video:



Additional Information:

Dissolve Ozone with Bubble Diffusers

Dissolve ozone with bubble diffusers

Compare Diffuser to Venturi Injector

Bubble Diffuser

Venturi Injector

Fundamentals of Ozone Solubility

Fundementals of ozone solubility



Ozone Dosage vs Dissolved

Ozone dosage vs dissolved



Online Ozone Calculations

Online ozone calculations



Ozone Solubility Basics





More Information
Manufacturer Oxidation Technologies
Quickbooks Stock Level 0.000000
Call For Price Yes
Flow Rates

0-40 LPM

Nominal Gas Flow Rate 0-40 LPM
Gas Connections 3/4" Ceramic Male NPT
Dimensions (LxWxH) 225 mm Diameter, 30 mm Thick
Warranty 1 Year
