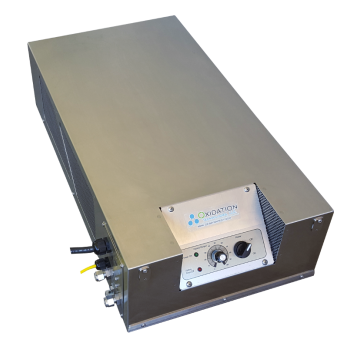

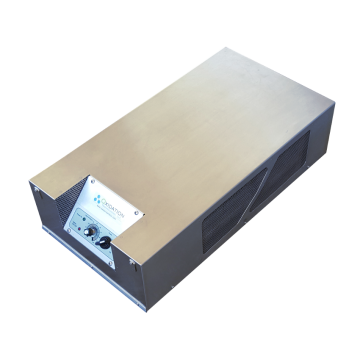

This turnkey ozone generator includes the ozone generator and oxygen concentrator integrated into one system. OXG-100 produces 100 g/hr ozone from integrated oxygen concentrator. Air cooled, wall mount, or floor standing generator is extremely versatile and easy to use.

4 week lead time

The OXG line of ozone generators are turnkey ozone generators with integrated oxygen concentrators.  Simply plug into electrical power and produce both oxygen and ozone from one device.  Easy to use, and powerful ozone generator for multiple industrial applications. The OXG-100 produces 100 g/hr ozone from oxygen at 6% by weight.  Only 20 LPM of oxygen is required to produce the 100 g/hr ozone. The OXG-100 Ozone Generator is constructed in a stainless steel enclosure as standard equipment for maximum durability and corrosion resistance.


Key Features:

- Turnkey ozone generator with integrated oxygen concentrator

- Produces 100 g/hr ozone from oxygen

- Produces 20 LPM oxygen for ozone production

- Very efficient ozone generator produces high concentrations of ozone

- Wall mountable

- Flow meter is standard

- Adjustable output Standard

- Easy to install and operate


Ozone Generator Performance Chart - Ozone Production from Oxygen:


Common Applications:

     -Water treatment


     -Odor control

     -Agricultural applications

     -Ultrapure water applications

Options are available for the OXG100 to configure in any way you need.  Standard options for ordering online are listed blow.  For other options, you may require please contact our office for help to ensure we configure exactly to your needs.



     -External Compressed Air - the OXG ozone generators incorporated an oil-less compressor to provide compressed for the ozone generator.  In very humid or poor air quality environments it is preferred to use compressed air for your high-quality source.  We will remove the compressor, and replace with air solenoid valve, pressure regulator, and 2-stage air filtration.

     -Ozone Leak Sensor - for safety an ozone leak sensor should be used with every ozone generator.  We can incorporate this sensor directly into the ozone generator.



OXG Series Brochure

More Information
Call For Price No
Ozone Output 100 g/hr
Feed Gas Built-in O2 Concentrator
Nominal Gas Flow Rate 20 LPM oxygen to produce 100 g/hr ozone
Operating Pressure 5 PSI
Max Pressure 9 PSI
Manufacturer Oxidation Technologies
Cooling Method Air Cooled
Corona Cell Quartz
Gas Connections 1/4" compression fittings
Dimensions (LxWxH) 12" x 30" x 38"
Operational Temperature Range 35 - 95-deg F
Max O3 % 5% - 7.5%
Power Requirements 120 VAC, 60 Hz, 1-phase, 10amp (220 VAC optional)
Lead Time 1-week
Warranty 1 Year
Country of Origin USA
Description 30" wide x 12" deep x 38" tall
Unit Features

Ozone Output:

- 100 g/hr ozone from 20 LPM oxygen @ 6.0% by weight

- Built-in 20 LPM oxygen concentrator
